Automation

Automation allows you to create a set of rules for modules of Zoho Books based on which appropriate actions would be performed. A good example would be the case where a congratulatory e-mail is sent automatically to the team members when a quote for goods worth over ₹1000 gets accepted by a client.

In the next few steps, you will be learning about:

To get started with workflows, navigate to > Automation.

Workflow Scenarios

Setting up a new workflow rule

Email Alerts

In-app Notifications

Field Updates

Webhooks

Custom Functions

Schedules


Setting up a new workflow rule

A workflow rule consists of  actions that comprises of Email Alerts, Field Updates and Webhooks that play an essential role in executing a task. A workflow rule may employ one or more actions to accomplish the task.

To set up a workflow rule:

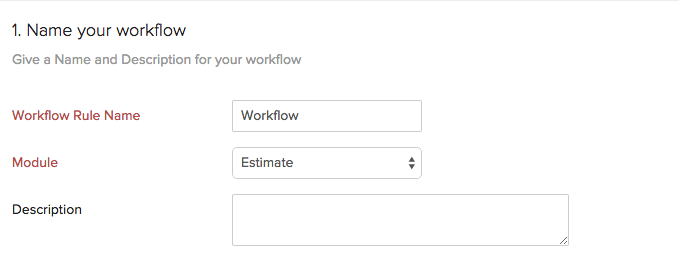

Name your workflow

workflow name

Field Description
Workflow Rule Name Give a unique name for the workflow rule.
Module Select the module for which you wish to create a workflow.
Description Give a small description for your workflow rule.

Choose when to trigger a workflow

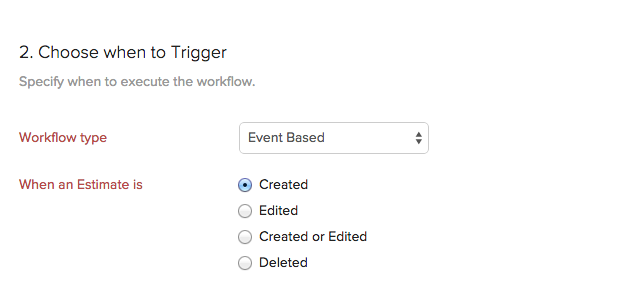

when trigger workflow

You can choose when to trigger the workflow based on the parameters you select in the following fields.

Workflow Type

There are two types of workflows:

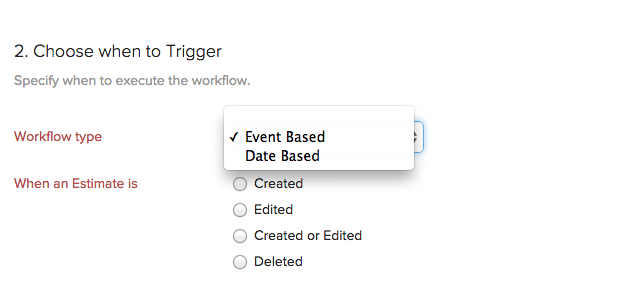

workflow type

Event Based: If the workflow is Event Based, then the workflow is triggered when a module is:

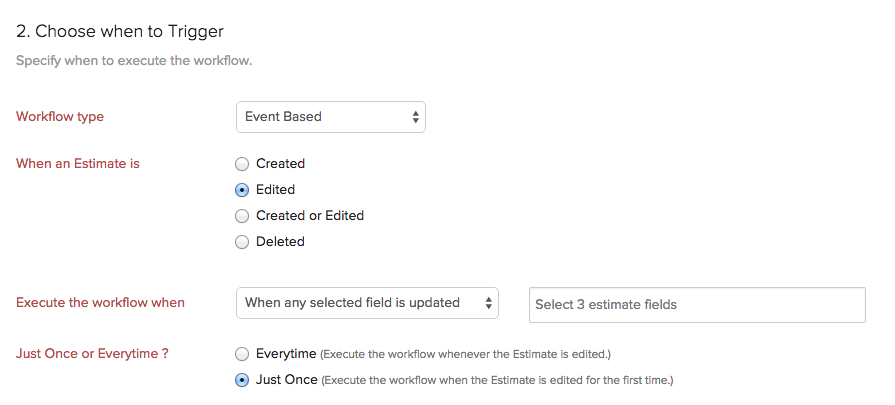

When a module is Edited or Created or Edited, additional fields appear.

when to trigger

Field Description
Execute the workflow when There are 3 options to choose from
-When any field is updated.
-When any selected field is updated.
-When all selected field are updated.
If you select When any selected field is updated or When all selected fields are updated in the drop down, an additional box will appear where you can select any 3 fields of the module.
Just Once or Overtime? Just Once- The workflow would be executed when the criteria is met for the first time.
Everytime- The workflow would be executed everytime the criteria is met.

Date Based:
If the workflow is Date Based, additional fields appear.

when trigger date based

Field Description
Date of Execution Select the workflow to be triggered on any number of days before or after Module Date, Expiry Date or Created Time from the drop down.
date based execution
Execution Time You may choose the exact time of execution by selecting the corresponding hh or mm .

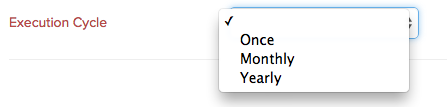

Execution Cycle You may choose the frequency of triggering a workflow by choosing Once, Monthly or Yearly from the drop down.
execution cycle

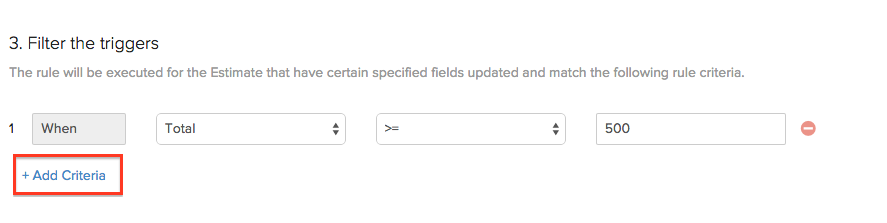

Filter the triggers

Filter the triggers section allows you to set one or more conditions based on which the action will be executed.

Filter The Trigger

Field Description
Condition The filter will be triggered based on the criteria you set. You can also add multiple criteria by clicking on + Add Criteria based on which the workflow rule will be executed.

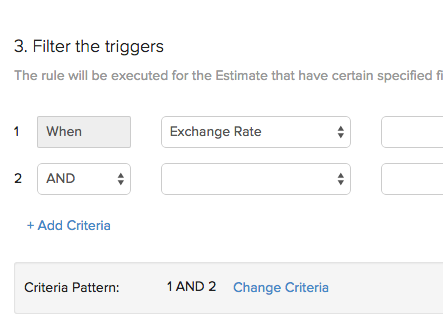

Trigger Condition
The condition for the next criteria may be AND or OR depending on whether you wish to include both or either one of the criteria. Also, you can change the criteria pattern as you want by selecting Change Criteria.

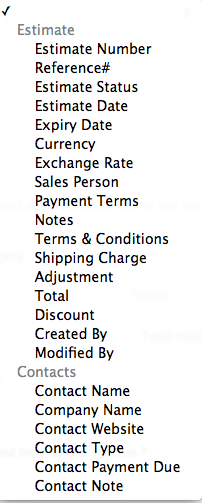

Field Attributes The field is used to select an attribute from the list that broadly covers the terms that are related to the module.
Module List
Rules Select the rules based on which the system should filter the trigger. If the field has alphanumeric values, the rules are,
Text Rules
If the field has only numerical values, then the rules are,
Numeric Rules
Value Field Enter the value of the attribute for which the filter must be applied.

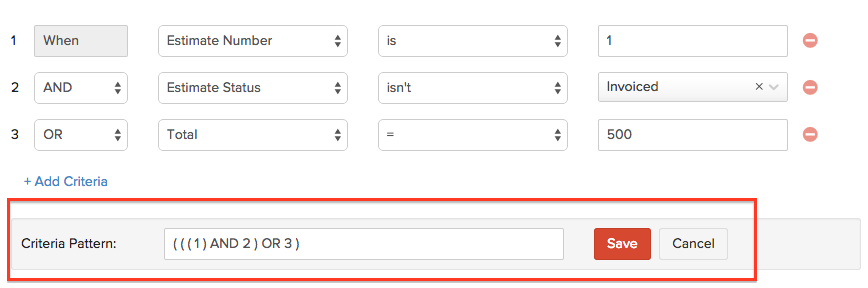

Editing Criteria Pattern:

You can edit the criteria pattern to suit your requirements by selecting Change Criteria. The editor allows you to define a pattern of your choice using simple AND/OR logic. For example, if you wish to trigger the workflow rule When Quote Number is 1 AND either Quote Status isn’t Invoiced OR Total is equal to 500,

Change Criteria

The pattern is (((1)AND 2) OR 3). If you feel the criteria pattern does not match your requirement, you can edit it to be (1AND (2 OR 3)).

Change Criteria Pattern

Click Save to continue.

Note: You can have a maximum of 10 criteria for each Workflow Rule.

Actions

Once the rules have been set, the actions to be taken upon encountering the conditions has to be decided. You can customize the actions to suit your business needs and program it to act immediately or at a particular time.

Actions

Immediate Actions:

Field Description
Type Select one of the three types of actions,
-Email Alerts
-Field Updates
-Webhooks
You can also add multiple actions by clicking on +Add New Actions.
Name The field should contain the name of the Email Alerts, Field Updates or Webhooks. For example, in the case of an email alert, you can either pick the ones from the list you have already created or you can add a new one by selecting + Add New Email Alert.
Email Alert Ex
Follow the same steps for Field Updates and Webhooks.
Details The details of the action is displayed here.

Time Based Actions:
If you wish to schedule actions for a particular time, select the check box next to Would you like to add time based actions?. This will display additional fields to enter the desired time.

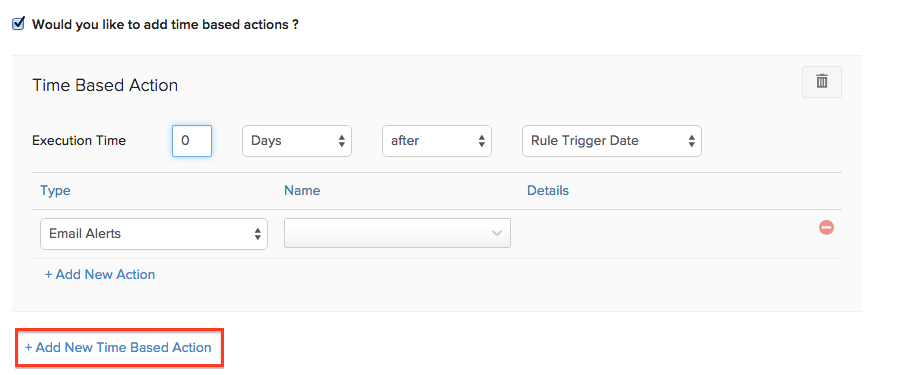

Time Based Action

Field Description
Execution Time Enter the desired number of days before or after,
-Rule Trigger Date
-Module Date
-Expiry Date
-Created Time
-Modified Time

Next, select the type of action that you wish to take. It can be an Email Alert, Field Update or a Webhook. You can also add multiple time based actions by selecting +Add New Time Based Action.

Note: You can add a maximum of 5 time based actions. Also, each time based action can have a maximum of 5 actions.

Finally, click Save to create the workflow rule to implement it for the modules in Zoho Books.

Other Actions

You can also mark your workflow rules as Active or Inactive. To do so, hover the cursor and select mark as active or mark as inactive.

Delete a workflow rule: To delete the workflow rule:

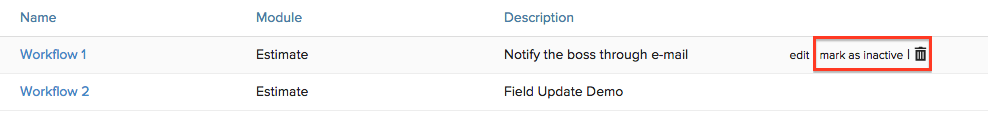

Mark Delete Workflow

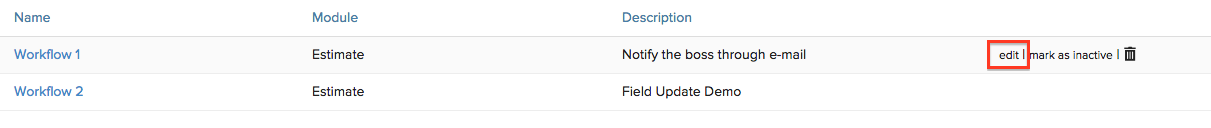

Edit a workflow rule: To edit a workflow rule:

Or, you can edit a workflow rule by simply clicking the required workflow rule.

Edit Workflow

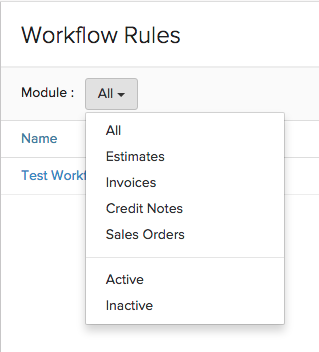

Filter workflow rules:
To filter the workflow rules:

You can also filter workflow rules based on whether they are active or inactive. Based on your selection, the corresponding workflow rules will be displayed as a list.

Workflow Filter

Note:


Email Alerts

The following steps will explain how to set up an email alert for any module in Zoho Books.

Creating a new Email Alert:
To set up an email alert:

New Email Alert

Field Description
Name Give a unique name for the email alert.
Module Select the module for which you wish to create an email alert.
Email Template You can pick a template from the drop down or click on + Add New Email Template if you wish to create a new one.
email temp drop
Email Recipients Pick contacts from the drop down, to whom you wish to send the email alerts.
Additional Recipients If you wish to send out email alerts to more people, enter their email addresses separated by a comma. Please note that you can add a maximum of 10 additional recipients.

Click on Save to create a new email alert. You can now select one of the many email alerts created, from the drop down, to notify you when a workflow is triggered.

Other Actions

Delete an email alert:
To delete an email alert:

Delete email alert

Filter email alerts:
To filter the email alerts:

Based on your selection, the corresponding email alerts will be displayed as a list.

Filter Email Alert

Note:


In-app Notifications

Zoho Books lets you create in-app notifications to notify your users of an event or a significant activity that has taken place in your organization. You will be able to set this for all the modules and also choose when to trigger the notification.

Scenario: Let’s say the sales team has made a sale worth 100000 in your organization. All the admins and users of the organization may not be aware of the sale. Triggering an in-app notification for invoices whose total is above the organization’s average sale value would have notified all the users of the organization.

Similarly, you will be able to set up a workflow rule to trigger in-app notifications for your organization. Here’s how:

Workflow

New Notification

Set Criteria

The next time the action occurs, selected recipients will be notified in the Bell icon. Click it to view the details.

Notification


Field Updates

The option of Field Updates allows you to automatically make changes to a field of a particular module for which the workflow has been triggered. For example, you can choose to automatically extend the expiry date to 30th June 2015 of a quote if the total amount is greater than or equal to $500. In this case, the Expiry Date field is changed to the above date if the Total field is “>=“500.

To set up a field update:

New Field Update

Field Description
Name Give a unique name for the field update.
Module Select a module for which you wish to create a field update.
Update Select the field in which you wish to make changes upon triggering a workflow from the drop down.
-Reference #
-Expiry Date
-Sales Person
-Notes
-Terms & Conditions
-Adjustment Description
Enter the value of the field in the corresponding box. If you wish to update the field with an empty value, check the box Update with empty value?.
Update Empty Value

Click on Save to create a new field update. You can now select one of the many field updates created to implement changes when the workflow is triggered.

Other Actions

Delete a field update:
To delete a field update:

Delete Field Update

Filter field updates:
To filter the field updates:

Based on your selection, the corresponding field updates will be displayed as a list.

Filter Field Update

Note: You can create a maximum of 3 field updates for each workflow rule.


Webhooks

Webhooks facilitate communication with third-party applications by sending instant web notifications every time an event occurs in Zoho Books. With Webhooks, you can configure HTTP & HTTPS URLs and associate them with workflow rules to automate the notification process. Read our help document on webhook examples to know more about when and how you can use webhooks.

For general information about webhooks, visit webhooks.org.

Create a Webhook

To set up a webhook:

Click + New Webhook New Webhook page

Note:If you want to specify a port number in the URL and Parameters field, note that Zoho Books only supports port numbers 80 and 443.

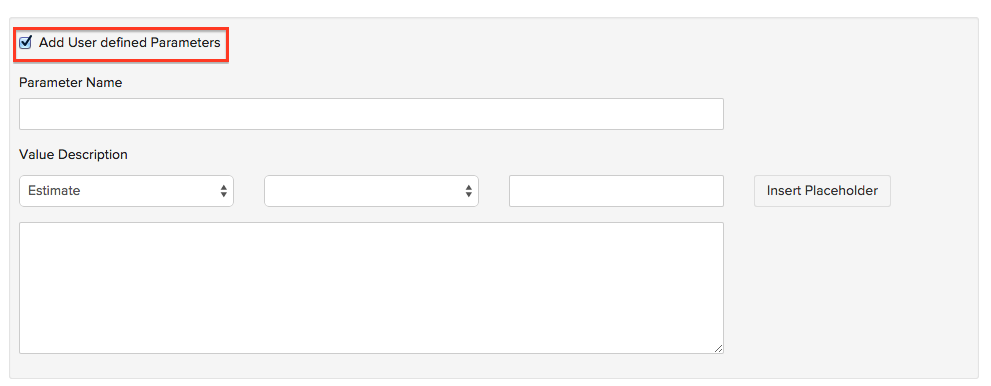

You can also add additional query parameters by clicking Add Parameters and entering the required values in the Key and Value fields. You can add custom parameters like Auth Token, Security Token, API Key, etc.

URL and Parameters

Note: You cannot edit or view the secret token later.

Secret Token

Note: The secret token will be used to compute a hash value, so, you will have to ensure that the same token is available on your server to compute a similar hash value.

Headers Authorization Type Body

Note: When you set up webhooks, all your contacts’ details in your Zoho Books organization (name, phone number, address, and email address) will be shared with the URL you want to notify.

Secure Your Webhooks

Securing your webhooks can help verify that the webhooks were sent from Zoho Books. To do this, you have to set up your server so that it listens for webhooks from Zoho Books. When your server receives a webhook from Zoho Books, a hash value must be generated based on the payload and your secret token. Once done, check if it matches the hash value from Zoho Books and thereby validate the source of the webhook. This can add a layer of security by enabling your server to disregard third-party webhooks pretending to originate from Zoho Books.

Validate Webhooks

When your server receives the webhook, a hash value will have to be generated for the payload in the same way that Zoho Books generated it. This is necessary to produce the same hash value to validate the webhook.

The following parameters (if available) are used to generate the hash value:

Construct a string by sorting the payload’s key-value pairs in alphabetical order. The pairs must be sorted in alphabetical order with respect to their keys.

Note

  • If your webhook contains query string parameters, ensure that those key-value pairs are sorted along with the payload’s key-value pairs.
  • There cannot be any spaces between the key-value pairs.

Once you’ve sorted the key-value pairs and constructed the string, append the raw JSON to the end of the string.

Examples

1. Default Payload

Query string parameters’ key-value pairs:

subscription\_id=90343, name=basic

Default payload/raw JSON:

{"created\_date":"2019-03-06","event\_id":"5675"}

The constructed string would be:

namebasicsubscription\_id90343{"created\_date":"2019-03-06","event\_id":"5675"}

2. x-www-form-urlencoded

Query string parameters’ key-value pairs:

customer\_name=Brandon, status=active

x-www-form-urlencoded payload’s key-value pairs:

addon\_description=Monthly addon, quantity=1

The constructed string would be:

addon\_descriptionMonthly addoncustomer\_nameBrandonquantity1statusactive

Pro Tip

  • If your payload is in the x-www-form-urlencoded format, the entire string must be decoded before generating the hash value.
  • If one of the key value pairs contains spaces, the spaces must also be included in the constructed string.

The hash value can be computed by applying the HMAC-SHA256 algorithm on this string, along with the secret token that was used in Zoho Books.

You can then validate the webhook by checking if the hash value computed from your side matches the one in the header (X-Zoho-Webhook-Signature) of the webhook from Zoho Books.

Configuring SMS Gateways

You can set up webhooks to send and receive message alerts through SMS gateways. All you have to do is configure the SMS gateways using the URL.

To configure the URL for an SMS gateway:

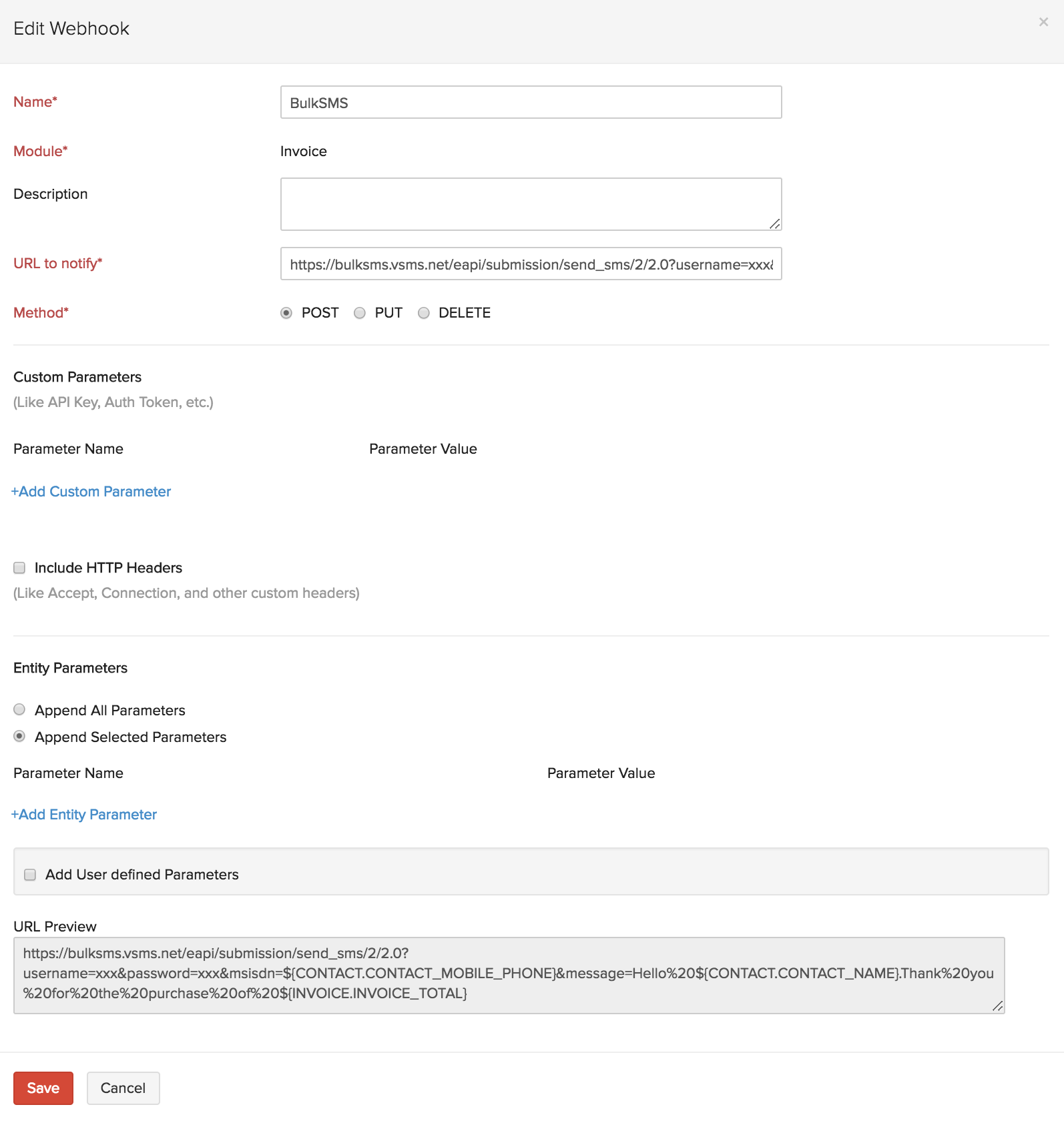

Configure Bulk SMS

Note: If there are other punctuations in your message content, you can check how to replace them with modifiers from this website. However, ensure that you do not replace punctuations that are essential to the message’s syntax.

After formatting your message with %20 for blank spaces and %2C for commas, it would look like this:

URL: https://bulksms.vsms.net/eapi/submission/send_sms/2/2.0?username=%username%&password=%password%&msisdn=${CONTACT.CONTACT_MOBILE_PHONE}&message=Hello%20${CONTACT.CONTACT_NAME}.Thank%20you%20for%20the%20purchase%20of%20${INVOICE.INVOICE_TOTAL}

We’ve provided a list of popular SMS gateways along with their URL below.

SMS Gateways Description URL Instructions
Bulk SMS Bulk SMS is a popular SMS Gateway and is compatible with over 800 mobile network providers, worldwide. https://bulksms.vsms.net/eapi/submission/send_sms/2/2.0?username=%username%&password=%password%&msisdn=${CONTACT.CONTACT_MOBILE_PHONE}&message=%message_content% Replace the placeholders in the URL with the username and password of your Bulk SMS account
High Speed SMS High Speed SMS is a feature-rich SMS gateway. http://cheapsms.highspeedsms.com/sendsms.jsp?user=%username%&password=%password%mobiles=${CONTACT.CONTACT_MOBILE_PHONE}&sms=Hi%20${CONTACT.CONTACT_NAME}%2C%20thank%20you%20for%20your%20payment.%20Your%20balance%20payment%20amount%20is%20${INVOICE.INVOICE_BALANCE} For High Speed SMS, replace the placeholders in the URL with the Username and Password of your High Speed SMS account. Next, replace the example message content after “sms=” with the message of your choice.
Redsms Redsms is another frequently used SMS gateway, which provides a dedicated bandwidth for high volume users. http://login.redsms.in/API/SendMessage.ashx?user=%username%&password=%password%&type=t&senderid=%senderid%&phone=${CONTACT.CONTACT_MOBILE_PHONE}&text=Thank%20you%20for%20your%20order. For Redsms, replace the placeholders in the URL with the Username, Password, and Sender ID of your Redsms account. Next, replace the example message content after “text=” with the message that you would like to send.
Sandesh Live Sandesh Live is a bulk SMS provider for enterprise users. http://sandeshlive.in/API/WebSMS/Http/v1.0a/index.php?username=%username%&password=%password%&sender=SANDES&to=${CONTACT.CONTACT_MOBILE_PHONE}&sa=D&sntz=1&usg=%usg%&reqid=1&format={json/Text}&route_id=23&message=Hello%20Test%20Message For Sandesh Live, replace the placeholders in the URL with the Username, Password and usg of your Sandesh LIVE account. Next, replace the example message content after “message=” with the message of your choice.
Gupshup Gupshup is an SMS gateway that supports bots for smart messaging capabilities. https://enterprise.smsgupshup.com/GatewayAPI/rest?method=SendMessage&msg_type=TEXT&auth_scheme=plain&v=1.1&format=text&send_to=${CONTACT.CONTACT_MOBILE_PHONE}&userid=%username%&password=%password%&msg=Welcome%20to%20SMS%20GupShup%20API For Gupshup, replace the placeholders in the URL with the User ID and Password of your Gupshup account. Next, replace the example message content after “msg=” with the message content of your choice.
thinkcept thinkcept is an SMS gateways which provides features such as personalized messages for individuals and scheduling of messages as well. http://sms.thinkcept.com/api/mt/SendSMS?APIKey=%API_Key%&senderid=THINKC&channel=2&DCS=0&route=1&flashsms=0&number=${CONTACT.CONTACT_MOBILE_PHONE}&text=Hello%20${CONTACT.CONTACT_NAME}.Thank%20you%20for%20the%20purchase%20of%20${INVOICE.INVOICE_TOTAL} For thinkcept, replace the placeholder in the URL with your API key for thinkcept and replace the example message content after “text=” with the message that you would like to send.
SMS-Magic Learn more. - -
Text Local Learn more. - -

SMS-Magic

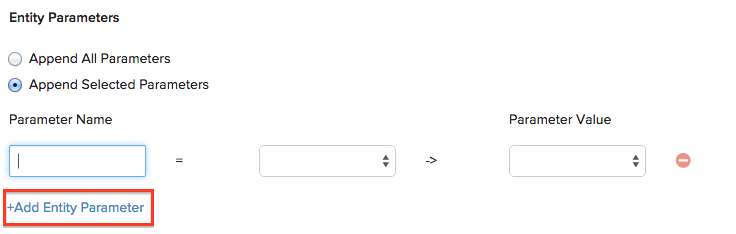

SMS gateways such as SMS-Magic requires you to enter additional entity parameters to configure the webhook.

To configure SMS-Magic:

Configure SMS Magic


<?xml version="1.0"?>
<m:Library xmlns:m="http://screen-magic.com" xmlns="http://www.defns.com">
<userid>**User_ID**</userid>
<senderid>**%Sender_ID**</senderid>
<accountid>**%Account_ID**</accountid>
<hashkey>**%hashkey%**</hashkey>
<message mobilenumber="${CONTACT.CONTACT_MOBILE_PHONE}" >
<![CDATA[${INVOICE.INVOICE_TOTAL}]]>
</message>
</m:Library>

Replace the placeholders in the URL with the User ID, Sender ID and Account ID of your SMS-Magic account. The hashkey refers to a standard hashed md5 value of a string that is a concatenation of your User ID, Password, Account ID and Sender ID.

Note: To generate the hashed md5 value, you can visit this site.

Text Local

Text Local requires an entity parameter and a custom parameter to function.

To configure Text Local:

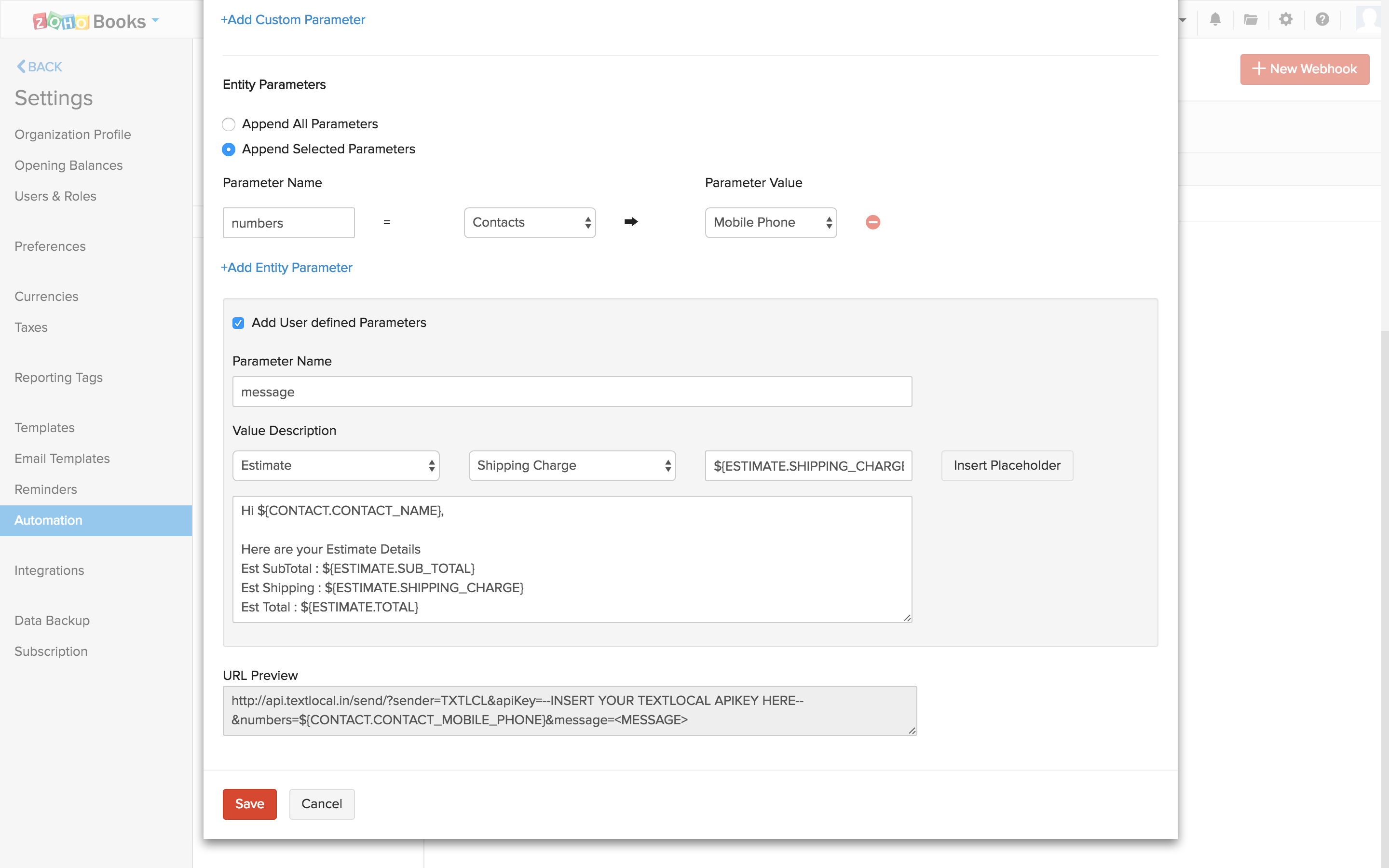

Configure Text Local

Other Actions

Delete Webhooks

To delete a webhook:

Click the Delete icon

The webhook will be deleted. If you’ve used in the webhook in a workflow rule, ensure that you update the workflow rule as the workflow rule might not get triggered.

Filter Webhooks

To filer the webhooks list, follow these steps:

Based on your selection, the corresponding webhook will be displayed as a list.

Filter Webhook

Note:


Custom Functions

Custom functions in Zoho Books allows you to write small pieces of code to automate your business processes. Be it providing a special discount on your customers’ invoice, or adding a late fee when an invoice becomes overdue, all you have to do is write a piece of code using Deluge script and link it to a workflow rule and automation of the process will be taken care of.

Note: Custom Functions are available only for the users in the Premium or higher plans of Zoho Books.

What is Deluge?

Deluge(Data Enriched Language for the Universal Grid Environment) is an online scripting language integrated with Zoho Creator. It enables users to add logic to the application, incrementally, making it more powerful and robust.

To know about Deluge, refer the Deluge Reference Guide.

If you wish to learn Deluge by writing code samples, click here.

Creating and Executing a Custom function

To setup a custom function,

New Custom function button

Custom function form

Now, the next step is to create a workflow rule using the newly created custom function.

Now, whenever the criteria is met, the workflow rule will be triggered, which in turn will trigger the custom function.

Default fields

As of now, custom functions support User, Organization, Quote, Invoice, Sales Order, Purchase Order, Customer, Recurring Invoice, Expense, Bill, Recurring Bill, and Item modules.

These modules will have the following fields from which you can get the necessary paramters for your custom function.

user

The user field supports the following paramaters:

Key Fields Description
name Name of the user
zuid ZUID of the user
organization

The organization map supports the following fields:

Key Fields Description
organization_id Your organization ID
name Organization name
time_zone Time zone of your organization
language_code Organization’s language
date_format Your organization’s date format
currency_id Currency ID
currency_code Currency code
currency_symbol Currency symbol
address Organization address
phone Organization’s contact number
fax Fax number
website Organization URL
email Email address
portal_name Portal name of your organization

Sample map:

{
	"time_zone": "Asia/Calcutta",
	"language_code": "en",
	"currency_id": "7605000000000099",
	"phone": "99999999999",
	"fax": "check",
	"website": "",
	"email": "charles@zylker.com",
	"address": {
		"zip": "624001",
		"country": "India",
		"city": "New Delhi",
		"street_address2": "Block 15",
		"street_address1": "6/35 Garden Lane,",
		"state": "Delhi"
	},
	"organization_id": "12345678",
	"name": "Zlyker Industries",
	"date_format": "dd MMM yyyy",
	"currency_symbol": "Rs.",
	"portal_name": "zylkerindustry",
	"currency_code": "INR"
}
quote

The quote map supports the following fields:

Key Fields Description
quote_id Quote ID
quote_number Your quote number
date Quote date
reference_number Reference number of your quote
status Status of your quote
customer_id ID of the customer who is assigned to the quote
customer_name Your customer’s name
currency_id Currency ID
currency_code Currency code
currency_symbol Currency symbol
exchange_rate Exchange rate involved in the quote
expiry_date Expiry date of the quote
discount_amount Discount amount
discount Discount
shipping_charge Shipping charge entered in the quote
adjustment Adjustments
sub_total Sub total of the quote
total Quote total
tax_total Total tax amount in the quote
billing_address Billing address of the customer
shipping_address Shipping address of the customer
notes Notes
terms Terms and conditions
custom_fields Quote custom fields
salesperson_id ID of the salesperson
salesperson_name Name of the salesperson

Sample map:

{
	"total": "12000.0",
	"terms": “checking",
	"quote_id": "7605000000320001",
	"date": "2016-06-03",
	"quote_number": "EST-000026",
	"shipping_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": “Fax Number”
	},
	"salesperson_name": “Salesperson”,
	"adjustment": "0.0",
	"currency_symbol": "Rs.",
	"salesperson_id": "7605000000336089",
	"currency_code": "INR",
	"shipping_charge": "0.0",
	"custom_fields": [
		{
			"customfield_id": "7605000000190011",
			"is_active": true,
			"show_in_all_pdf": false,
			"value_formatted": "Check-6",
			"data_type": "autonumber",
			"index": 1,
			"label": "auto number",
			"show_on_pdf": false,
			"value": "Check-6"
		}
	],
	"currency_id": "7605000000000099",
	"exchange_rate": "1.0",
	"status": "invoiced",
	"sub_total": "12000.0",
	"customer_name": “Customer”,
	"discount_amount": "0.0",
	"discount": "0.0",
	"tax_total": "0.0",
	"reference_number": “Ref number”,
	"notes": "Looking forward for your business.",
	"expiry_date": "2016-06-03",
	"customer_id": "7605000000258011",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	}
}
invoice

The invoice map supports the following fields:

Key Fields Description
due_date Invoice due date
payment_expected_date Expected payment date for the invoice
reference_number Reference number of the invoice
customer_id Customer ID
customer_name Name of the customer who is assigned to the invoice
currency_id Currency ID
currency_code Currency code
currency_symbol Currency symbol
exchange_rate Exchange rate involved in the invoice
discount_amount Discount amount involved in the invoice
discount Discount involved in the invoice
shipping_charge Shipping charge entered in the invoice
adjustment Adjustments
sub_total Sub total of the invoice
tax_total Total tax amount in the invoice
total Total amount
balance Balance
price_precision Number of Decimal places
billing_address Billing address of the customer
shipping_address Shipping address of the customer
notes Notes
terms Terms and conditions
custom_fields Invoice custom fields
salesperson_id ID of the salesperson

Sample map:

{
	"total": "0.0",
	"payment_terms": "0",
	"terms": “Checking”,
	"price_precision": "2",
	"payment_expected_date": "2016-06-31”,
	"date": "2016-06-30",
	"shipping_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"balance": "0.0",
	"adjustment": "0.0",
	"currency_symbol": "Rs.",
	"salesperson_id": “7605000000336089”,
	"currency_code": "INR",
	"shipping_charge": "0.0",
	"custom_fields": [
		{
			"customfield_id": "7605000000336081",
			"is_active": true,
			"show_in_all_pdf": false,
			"value_formatted": "INV-8",
			"data_type": "autonumber",
			"index": 1,
			"label": "AutoNumber",
			"show_on_pdf": false,
			"value": "INV-8"
		},
		{
			"customfield_id": "7605000000351027",
			"is_active": true,
			"show_in_all_pdf": true,
			"value_formatted": "01 Aug 2016",
			"data_type": "date",
			"index": 2,
			"label": "Date",
			"show_on_pdf": true,
			"value": "2016-08-01"
		}
	],
	"currency_id": "7605000000000099",
	"exchange_rate": "1.0",
	"status": "draft",
	"sub_total": "12000.0",
	"customer_name": “Customer”,
	"invoice_number": "INV-000087",
	"discount_amount": "12000.0",
	"discount": "100.00%",
	"tax_total": "0.0",
	"reference_number": “checking”,
	"due_date": "2016-06-30",
	"invoice_id": "7605000000369043",
	"notes": "Thanks for your business.",
	"customer_id": "7605000000258011",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	}
}
sales order
Key Fields Description
date Sales Order date
tax_total Total tax amount in the sales order
zcrm_potential_id ID of the potential in Zoho CRM
discount_amount Discount amount involved in the sales order
salesorder_id Sales order ID
discount Discount
shipment_date Date on which shipment is made
billing_address Billing address of the customer
line_items Line items
currency_code Currency code
total Total amount
delivery_method_id Delivery method ID
terms Terms and conditions
delivery_method Method of delivery
shipping_address Shipping address of the customer
exchange_rate Exchange rate involved in the sales order
currency_symbol Currency symbol
custom_fields Sales order custom fields
quote_id Quote ID
reference_number Reference number of the sales order
salesperson_name Name of the salesperson involved
salesperson_id ID of the salesperson involved
shipping_charge Shipping charge entered in the sales order
salesorder_number Your sales order number
sub_total Sub total of the sales order
zcrm_potential_name Name of the potential in Zoho CRM
adjustment Adjustments made
customer_name Name of the customer who is assigned to the sales order
customer_id ID of the customer who is assigned to the sales order
currency_id Currency ID
status Status of your sales order

Sample map:

{
	"date": "2016-05-23",
	"tax_total": "0.0",
	"zcrm_potential_id": "",
	"discount_amount": "1200.0",
	"salesorder_id": "7605000000295003",
	"discount": "10.00%",
	"shipment_date": "2016-05-23",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"line_items": [
		{
			"bcy_rate": 12000,
			"line_item_id": "7605000000295011",
			"quantity": 1,
			"item_id": "7605000000259147",
			"tax_name": "",
			"description": "",
			"discount": 0,
			"item_total": 12000,
			"item_custom_fields": [
			],
			"tax_id": "",
			"is_invoiced": true,
			"item_order": 0,
			"tags": [
			],
			"stock_on_hand": "",
			"unit": "",
			"rate": 12000,
			"tax_type": "tax",
			"name": "Moto",
			"tax_percentage": 0
		}
	],
	"currency_code": "INR",
	"total": "10820.0",
	"delivery_method_id": "7605000000461053",
	"terms": "Terms & Conditions",
	"delivery_method": "Door Delivery",
	"shipping_address": {
		"zip": "",
		"country": "",
		"address": "",
		"city": "",
		"state": "",
		"fax": ""
	},
	"exchange_rate": "1.0",
	"currency_symbol": "Rs.",
	"custom_fields": [
		{
			"customfield_id": "7605000000321009",
			"is_active": true,
			"show_in_all_pdf": true,
			"value_formatted": "Text",
			"data_type": "string",
			"index": 1,
			"label": "Text",
			"show_on_pdf": true,
			"value": "Text"
		}
	],
	"quote_id": "7605000000405047",
	"reference_number": "Reference",
	"salesperson_name": "Arun",
	"salesperson_id": "7605000000135003",
	"shipping_charge": "10.0",
	"salesorder_number": "SO-00002",
	"sub_total": "12000.0",
	"zcrm_potential_name": "",
	"adjustment": "10.0",
	"customer_name": "Arun",
	"customer_id": "7605000000101007",
	"currency_id": "7605000000000099",
	"status": "invoiced"
}
purchase order

The purchase order map supports the following fields:

Key Fields Description
date Date of the purchase order
delivery_address Delivery address
tax_total Total tax amount in the purchase order
delivery_org_address_id ID of delivery org address
purchaseorder_id Purchase order ID
expected_delivery_date Expected delivery date
billing_address Billing address of purchase order
line_items Line items in the purchase order
currency_code Currency code
total Total of the purchase order
delivery_customer_id Delivery customer ID
exchange_rate Exchange rate involved in the purchase order
currency_symbol Currency symbol
custom_fields Purchase order custom fields
ship_via_id ID of mode of shipping
vendor_name Name of the vendor
reference_number Reference number of your purchase order
purchaseorder_number Purchase order number
delivery_date Delivery date
vendor_id Vendor ID
sub_total Sub-total of the purchase order
ship_via Means of shipping
attention Attention
crm_owner_id ID of Zoho CRM owner
currency_id Currency ID
status Status

Sample map:

{
	"date": "2016-07-11",
	"delivery_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"tax_total": "0.0",
	"delivery_org_address_id": "7605000000054013",
	"purchaseorder_id": "7605000000378500",
	"expected_delivery_date": "",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"line_items": [
		{
			"bcy_rate": 1000,
			"line_item_id": "7605000000378504",
			"quantity": 1,
			"item_id": "7605000000298021",
			"tax_name": "",
			"description": "",
			"item_total": 1000,
			"tax_id": "",
			"item_order": 0,
			"tags": [

			],
			"unit": "No",
			"account_id": "7605000000000403",
			"rate": 1000,
			"tax_type": "tax",
			"account_name": "Advertising And Marketing",
			"name": "Moto G Turbo Edition",
			"tax_percentage": 0
		}
	],
	"currency_code": "INR",
	"total": "1000.0",
	"delivery_customer_id": "",
	"exchange_rate": "1.0",
	"currency_symbol": "Rs.",
	"custom_fields": "[]",
	"ship_via_id": "7605000000461053",
	"vendor_name": "Mr. Vendor",
	"reference_number": "Reference",
	"purchaseorder_number": "PO-00006",
	"delivery_date": "2016-07-11",
	"vendor_id": "7605000000112009",
	"sub_total": "1000.0",
	"ship_via": "Door Delivery",
	"attention": "Arun",
	"crm_owner_id": "",
	"currency_id": "7605000000000099",
	"status": "billed"
}
customer

The customer map supports the following fields:

Key Fields Description
owner_id ID of associated owner
billing_address Billing address associated to customer
source Source of the customer
contact_id Contact ID
payment_terms Payments terms associated to customer
currency_code Currency code
language_code Language code
contact_type Type of the contact
twitter Twitter info
zcrm_contact_id ID of the contact in Zoho CRM
shipping_address Shipping address associated to customer
pricebook_id ID of pricebook associated
contact_name Name of contact
website Website of contact
owner_name Name of contact owner
currency_symbol Currency symbol
zcrm_account_id ID of Zoho CRM account
custom_fields Custom fields associated with customer
facebook Facebook info
pricebook_name Name of pricebook associated
primary_contact_id ID of primary contact
company_name Name of the company
contact_salutation Contact salutation
crm_owner_id ID of CRM owner
currency_id Currency ID
payment_terms_label Payment terms label
status Status

Sample map:

{
	"owner_id": "",
	"shipping_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"source": "user",
	"contact_id": "7605000000197147",
	"payment_terms": "0",
	"currency_code": "INR",
	"language_code": "en",
	"contact_type": "customer",
	"twitter": "",
	"zcrm_contact_id": "",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"pricebook_id": "",
	"contact_name": "Arun",
	"website": "www.zoho.com",
	"owner_name": "",
	"currency_symbol": "Rs.",
	"zcrm_account_id": "418070000000135001",
	"custom_fields": [
		{
			"customfield_id": "7605000000063049",
			"is_active": true,
			"show_in_all_pdf": false,
			"value_formatted": "1234",
			"data_type": "number",
			"index": 1,
			"label": "Unpaid Invoices",
			"show_on_pdf": false,
			"value": "1234"
		}
	],
	"facebook": "",
	"pricebook_name": "",
	"primary_contact_id": "7605000000197149",
	"company_name": "Zoho",
	"contact_salutation": "",
	"crm_owner_id": "",
	"currency_id": "7605000000000099",
	"payment_terms_label": "Due on Receipt",
	"status": "active"
}

recurring invoice

The recurring invoice map supports the following fields:

Key Fields Description
end_date End date of the recurring invoice profile
tax_total Total tax amount in the recurring invoice
discount_amount Discount amount involved in the recurring invoice
repeat_every Repetition period of recurring invoice profile
discount Discount involved in the recurring invoice
taxes Taxes associated with the recurring invoice
billing_address Billing address of the customer
line_items Line items in the recurring invoice
payment_terms Payments terms associated to customer
currency_code Currency code
last_sent_date Date of the last sent invoice
total Total amount
recurrence_name Name of the recurring invoice profile
shipping_address Shipping address of the customer
next_invoice_date Date of the next invoice to be sent
recurrence_frequency Frequency of the recurring invoice profile
recurring_invoice_id ID of the recurring invoice profile
contact_persons Contact persons involved in recurring invoice
start_date Starting date of the recurring invoice profile
exchange_rate Exchange rate involved in the recurring invoice
currency_symbol Currency symbol
custom_fields Recurring invoice custom fields
salesperson_name Name of the sales person involved
salesperson_id ID of the sales person involved
shipping_charge Shipping charge entered in the recurring invoice
sub_total Sub-total of the recurring invoice
adjustment Adjustments made
customer_name Name of the customer involved
customer_id ID of the customer involved
status Status of the recurring invoice profile

Sample map:


{
	"end_date": "2016-10-15",
	"tax_total": "0.0",
	"discount_amount": "1.0",
	"repeat_every": "2",
	"discount": "1.00%",
	"taxes": "[]",
	"billing_address": {"zip":"","fax":"","address":"","state":"","country":"","city":""},
	"line_items": [{"tags":[],"tax_name":"","tax_type":"tax","item_custom_fields":[],"product_type":"service","line_item_id":"348960000000103013","discount":0,"unit":"","item_order":0,"rate":100,"item_id":"","description":"%(d)%-%(m-2)%-%(y)%","name":"","quantity":1,"tax_id":"","tax_percentage":0,"item_total":100}],
	"payment_terms": "0",
	"currency_code": "GBP",
	"last_sent_date": "",
	"total": "200.0",
	"recurrence_name": "1",
	"shipping_address": {"zip":"","fax":"","address":"","state":"","country":"","city":""},
	"next_invoice_date": "",
	"recurrence_frequency": "months",
	"recurring_invoice_id": "348960000000103005",
	"contact_persons": "[]",
	"start_date": "2016-01-07",
	"exchange_rate": "1.0",
	"currency_symbol": "£",
	"custom_fields": [{"value_formatted":"EST-001","index":1,"is_active":true,"data_type":"string","show_on_pdf":false,"value":"EST-001","show_in_all_pdf":false,"label":"Quote Number","customfield_id":"348960000000056001"},{"value_formatted":"15 Oct 2016","index":2,"is_active":true,"data_type":"date","show_on_pdf":false,"value":"2016-10-15","show_in_all_pdf":false,"label":"Date","customfield_id":"348960000000056003"},{"value_formatted":"true","index":3,"is_active":true,"data_type":"check_box","show_on_pdf":false,"value":true,"show_in_all_pdf":false,"label":"Invoice Factoring","customfield_id":"348960000000056079"},{"value_formatted":"£100.00","index":4,"is_active":true,"data_type":"amount","show_on_pdf":true,"value":100,"show_in_all_pdf":true,"label":"Amount","customfield_id":"348960000000060003"},{"value_formatted":"10%","index":5,"is_active":true,"data_type":"percent","show_on_pdf":true,"value":10,"show_in_all_pdf":true,"label":"Percentage","customfield_id":"348960000000060005"}],
	"salesperson_name": "Arun N",
	"salesperson_id": "348960000000111001",
	"shipping_charge": "100.0",
	"sub_total": "100.0",
	"adjustment": "1.0",
	"customer_name": "iArun",
	"customer_id": "348960000000051041",
	"status": "expired"
}

expense

The expense map supports the following fields:

Key Fields Description
date Date
payment_mode Mode of payment
custom_fields Expense custom fields
vendor_name Name of the vendor involved
is_billable Billability of the expense
line_items Line items in the expense
project_name Name of the project involved
reference_number Reference number of the expense
currency_code Currency code
total Total
project_id ID of the project involved
vendor_id ID of the vendor involved
sub_total Sub-total on the expense
customer_name Name if the customer involved
customer_id ID of the customer involved
expense_id Expense ID
currency_id Currency ID

Sample map:

{
	"date": "2016-10-08",
	"payment_mode": "Cash",
	"custom_fields": "[]",
	"vendor_name": "Vendor",
	"is_billable": "true",
	"line_items": [{"tags":[],"tax_name":"Standard Rate","item_order":1,"tax_type":"tax","account_id":"348960000000000400","description":"Notes","tax_amount":16.67,"product_type":"goods","tax_id":"348960000000044037","line_item_id":"348960000000184015","tax_percentage":20,"item_total":83.33,"account_name":"Office Supplies"}],
	"project_name": "",
	"reference_number": "12345",
	"currency_code": "GBP",
	"total": "100.0",
	"project_id": "",
	"vendor_id": "348960000000051033",
	"sub_total": "83.33",
	"customer_name": "Accounts",
	"customer_id": "348960000000111017",
	"expense_id": "348960000000184003",
	"currency_id": "348960000000000103"
}

bill

The bill map supports the following fields:

Key Fields Description
date Date on the bill
bill_id ID of the bill
purchaseorder_ids ID of the purchase order involved
tax_total Total tax amount in the bill
exchange_rate Exchange rate involved in the bill
currency_symbol Currency symbol
custom_fields Bill custom fields
due_date Due date of the bill
vendor_name Name of the vendor involved
billing_address Billing address
line_items Line items in the bill
payment_terms Payments terms associated to vendor
payment_expected_date Expected payment date
reference_number Reference number of the bill
currency_code Currency code
total Total on the bill
bill_number Bill number
payment_made Payment made for the bill
balance Balance amount
recurring_bill_id ID of the recurring bill profile
vendor_id ID of the vendor involved
sub_total Sub-total on the bill
status Bill status

Sample map:

{
	"date": "2016-10-12",
	"bill_id": "348960000000193039",
	"purchaseorder_ids": "[]",
	"tax_total": "0.0",
	"exchange_rate": "1.0",
	"currency_symbol": "£",
	"custom_fields": "[]",
	"due_date": "2016-10-15",
	"vendor_name": "Vendor",
	"billing_address": {"zip":"","fax":"","address":"","state":"","country":"","city":""},
	"line_items": [{"tags":[],"tax_name":"","project_name":"","tax_type":"tax","account_id":"348960000000000412","customer_name":"","is_billable":false,"product_type":"goods","line_item_id":"348960000000193047","invoice_number":"","sku":"","purchaseorder_item_id":"","account_name":"Credit Card Charges","unit":"1","item_order":0,"rate":33000,"bcy_rate":33000,"item_id":"348960000000087031","description":"","project_id":"","name":"refrigerator","tax_id":"","quantity":1,"invoice_id":"","tax_percentage":0,"customer_id":"","item_total":33000}],
	"payment_terms": "3",
	"payment_expected_date": "",
	"reference_number": "1",
	"currency_code": "GBP",
	"total": "33000.0",
	"bill_number": "Bill-001",
	"payment_made": "0.0",
	"balance": "33000.0",
	"recurring_bill_id": "",
	"vendor_id": "348960000000051033",
	"sub_total": "33000.0",
	"status": "open"
}

recurring bill

The recurring bill map supports the following fields:

Key Fields Description
end_date End date of the recurring bill profile
tax_total Total tax amount in the recurring bill
exchange_rate Exchange rate involved in the recurring bill
custom_fields Recurring bill custom fields
repeat_every Repetition period of recurring bill profile
taxes Taxes involved in the recurring bill
vendor_name Name of the vendor involved
line_items Line items in the recurring bill
payment_terms Payments terms associated to vendor
currency_code Currency code
last_sent_date Date of the last sent bill
total Recurring bill total
next_bill_date Date of the next bill
recurring_bill_id ID of the recurring bill
recurrence_name Name of the recurring bill profile
vendor_id ID of the vendor involved
sub_total Sub-total on the recurring bill
recurrence_frequency Frequency of the recurring invoice profile
payment_terms_label Payment terms label
status Status of the recurring bill profile
start_date Starting date of the recurring bill profile

Sample map:

{
	"end_date": "2016-10-15",
	"tax_total": "0.0",
	"exchange_rate": "1.0",
	"custom_fields": "[]",
	"repeat_every": "1",
	"taxes": "[]",
	"vendor_name": "Vendor",
	"line_items": [{"tags":[],"tax_name":"","account_id":"348960000000000403","tax_type":"tax","product_type":"goods","line_item_id":"348960000000193067","account_name":"Advertising And Marketing","unit":"","item_order":0,"rate":900,"bcy_rate":900,"item_id":"348960000000051011","description":"","name":"Item","quantity":1,"tax_id":"","tax_percentage":0,"item_total":900}],
	"payment_terms": "0",
	"currency_code": "GBP",
	"last_sent_date": "2016-10-12",
	"total": "900.0",
	"next_bill_date": "",
	"recurring_bill_id": "348960000000193061",
	"recurrence_name": "RB-001",
	"vendor_id": "348960000000051033",
	"sub_total": "900.0",
	"recurrence_frequency": "weeks",
	"payment_terms_label": "Due on Receipt",
	"status": "expired",
	"start_date": "2016-10-12"
}

item

The item map supports the following fields:

Key Fields Description
item_id Item ID
custom_fields Item custom fields
item_type Type of the item
tax_name Name of the tax involved
purchase_rate Purchase rate of the item
zcrm_product_id ID of the product in Zoho CRM
tax_id ID of the tax involved
unit Unit of the item
account_id Sales account ID
purchase_account_name Name of the purchase account
purchase_account_id Purchase account ID
tax_type Type of the tax involved
rate Sales rate of the item
account_name Name of the sales account involved
name Name of the item
tax_percentage Percentage of tax involved
pricebook_rate Pricebook rate
sku SKU of the item
status Status of the item

Sample map:

{
	"item_id": "348960000000051011",
	"custom_fields": [{"value_formatted":"100","index":1,"is_active":true,"data_type":"decimal","show_on_pdf":true,"value":100,"show_in_all_pdf":true,"label":"Profit","customfield_id":"348960000000134003"}],
	"item_type": "sales_and_purchases",
	"tax_name": "",
	"purchase_rate": "900.0",
	"zcrm_product_id": "1665395000000205001",
	"tax_id": "",
	"unit": "1",
	"account_id": "348960000000000388",
	"purchase_account_name": "Advertising And Marketing",
	"purchase_account_id": "348960000000000403",
	"tax_type": "",
	"rate": "1000.0",
	"account_name": "Sales",
	"name": "Item",
	"tax_percentage": "0",
	"pricebook_rate": "1000.0",
	"sku": "SKU",
	"status": "active"
}

A few example explaining how these fields would help in fetching the necessary paramters:

Example 1:

To fetch quote id, use:

quoteid = quote.get("quote_id");

Example 2:

To fetch your organization name, use:

orgid = organization.get("name");

Example 3:

To fetch a user’s name and ZUID, use:

username = user.get("name");
zuid = user.get("zuid");

To know more about how to use Deluge scripts for writing custom functions, refer the Deluge Reference Guide.

To know more about different scenarios where custom functions could be useful, refer our Custom Function Scenarios page.


Schedules

Zoho Books lets you create and run predefined tasks at the specified time intervals using schedules. You can create your tasks using a deluge script and schedule this task to be executed at a particular time or on a recurring basis.

Note: This feature is available only for the users in the Premium, Elite, and Ultimate plans of Zoho Books.

Scenarios

Here are a few scenarios where schedules can be created to execute custom actions. However, you can create custom schedules based on your firm’s requirements.

Scenario 1: Peter runs a supermarket. At the end of every month, he wants to give a 10% off on the Next Purchase to customers whose total purchase for the month exceeds a certain amount, let’s say 1000. Peter creates a schedule to email this to selective customers on the last day of the month.

Scenario 2: Peter uses a third party application for maintaining customer and employee database internally. He would like to sync all data from Zoho Books to the other application periodically. To do so, he creates a custom schedule to sync the data at 6 pm every day.

Scenario 3: Peter sets a quarterly sales target for his territorial managers. Every four months, he has to send them their Profit and Loss reports and a congratulatory email when they have achieved their target or a motivating email for them to perform better. He writes a function and schedules it to be sent to his staff once every 4 months.

Creating New Schedules

To create a custom schedule:

Create New Scheduler

Insight: The recurrence pattern lets you decide when the custom schedule should be executed. You can choose to execute it on the set frequency.

Warning: The start date of a schedule cannot be more than one year from the creation date.

Set Expiry

Insight: Deluge (Data Enriched Language for the Universal Grid Environment) is an online scripting language integrated with Zoho Services. It enables you to write your own functions that lets you modify the application to suit your needs, incrementally, making it more powerful and robust.

Save Scheduler

Insight: You can create a maximum of 10 custom schedules.

Sample Function:

Here’s a sample function for Scenario 1:

organizationID = organization.get("organization_id");
name = organization.get("name");
orgEmail = organization.get("email");
salesResponse = invokeUrl
 [
 url: "https://books.zoho.com/api/v3/reports/salesbycustomer?organization_id=" + organizationID + "&from_date=" + toStartOfMonth(today).toString("YYYY-MM-dd") + "&to_date=" + eomonth(today,0).toString("YYYY-MM-dd")
 type: GET
 connection: "books_api_connection"
 ];
salesDetails = salesResponse.get("sales").toList();
for each  sales in salesDetails
{
	amount = sales.get("sales_with_tax");
	if(amount > "<ENTER AMOUNT>")
	{
		customerName = sales.get("customer_name");
    customerResponse = invokeUrl
     [
     url: "https://books.zoho.com/api/v3/contacts/" + sales.get("customer_id") + "?organization_id=" + organizationID
     type: GET
     connection: "books_api_connection"
     ];
    customerDetails = customerResponse.get("contact");
		customerEmail = customerDetails.get("email");
		sendmail
		[
			from :zoho.adminuserid
			to :customerEmail
			subject :"Thank you for shopping! Here's a 10% discount!"
			message :"<div>Dear&nbsp;" + customerName + ",<br></div><div><br></div><div>We just wanted to take a moment of our time to thank you for your continuous support.<br></div><div><br></div><div> Based on your recent purchases, we'd like to offer you a 10% off on your next purchase with us.&nbsp;<br></div><div><br></div><div>Please show this email during billing to avail this discount!<br></div><div><br></div><div>Regards,<br></div><div>" + name + "<br></div><div><br></div><div><br></div><div><br></div><div><br></div>"
		]
	}
}

Learn more from the Connections help document.

Automate your business workflow with Zoho Books’ accounting automation.


Was this document helpful?
Yes
No
Thank you for your feedback!
Want a feature?
Suggest
Switch to smart accounting software. Switch to Zoho Books.   Start my free 14-day trial Explore Demo Account

Books

Simplify accounting
and GST filing.
