Webhook

Webhooks allow you to integrate Zoho Mail with other external applications. A webhook is used to trigger an action in one application using real-time events from an external application. Webhooks are of two types - Incoming webhooks and Outgoing webhooks. Incoming webhooks are used to trigger an action inside Zoho Mail using real-time events from third-party applications. With outgoing webhooks, your incoming emails/ new tasks created can be configured to trigger actions in external applications.

How does it work?

In order to set up an integration between Zoho Mail and any third-party application, you will have to configure an incoming webhook in one application and an outgoing webhook in the other application. For example, if you wish to post events from an external application to your Streams group, the following steps should be carried out:

  1. Configure an incoming webhook in Zoho Mail.
  2. Obtain the Webhook URL generated while creating the incoming webhook.
  3. Configure an outgoing webhook in the third-party application using the webhook URL obtained.

If you wish to trigger an event in the external application when you receive emails, you need to configure the outgoing webhook in Zoho Mail and the incoming webhook in the third-party application.

Incoming webhooks

An incoming webhook lets you post to the URL of your choice when a specified event occurs in a third-party application. You can configure the incoming webhook to send emails and create posts, notes, or tasks in your Streams group using the information received from the external application.

Configuring Incoming webhook

  1. Login to Zoho Mail
  2. Navigate to Settings  > Integrations > Developer Space
  3. Select Incoming Webhooks under Configure section in the left menu.
  4. Click on Add new configuration
  5. Select the post format
    • ​Mail - Webhook update will be sent to your inbox as an email.
    • Post/ Notes/ Task - Webhook update will be posted in the preferred Streams group as a post/ note/ task
  6. If you have chosen Mail in the previous step, skip this step. If you have chosen post/ notes/ task, provide the following details on the configuration page:
    • ​​Custom Username - This name will be used to post in Streams
    • Group - The group where the updates will be posted
  7. Then, click on Write Function under Custom Function if you wish to modify the data in the post request to suit the webhook format as per your needs. Once you create the custom function, click on Select custom function to select the function.
    Note:
    You can establish connections between any third-party application of your choice using DRE Connectors.
  8. Click Generate URL and copy the URL created.

The URL that has been generated is used while configuring an outgoing webhook in the third-party application of your choice.

Note:

Incoming webhook can be configured for a Streams group only by the moderators or owner of the group.

Points to remember

  • If you wish the Streams post to include an @mention, include the following in the message body:
    • To @mention a group member, include @emailID in the message. Example: To @mention Rebecca, @rebecca@zylker.com
    • To @mention a group, include @group in the message. The group configured for the webhook will automatically be tagged.
  • The webhook URL should not be disclosed to unauthorized persons. If exposed, they will be able to post updates to your Streams group.
  • If you re-generate the webhook URL, you will need to replace the old URL with the new URL in all the places it has been used.

Outgoing webhooks

An outgoing webhook allows you to configure your emails/ tasks to trigger events in third-party applications. You can post the details of the emails/tasks you receive to external applications. The filters options in the configuration allow you to select which emails/tasks you want to act as triggers for the event.

Configuring Outgoing webhook​

  1. Login to Zoho Mail
  2. Navigate to Settings  > Integrations > Developer Space
  3. Select Outgoing Webhooks under the Configure section in the left menu.
  4. Click on Add new configuration

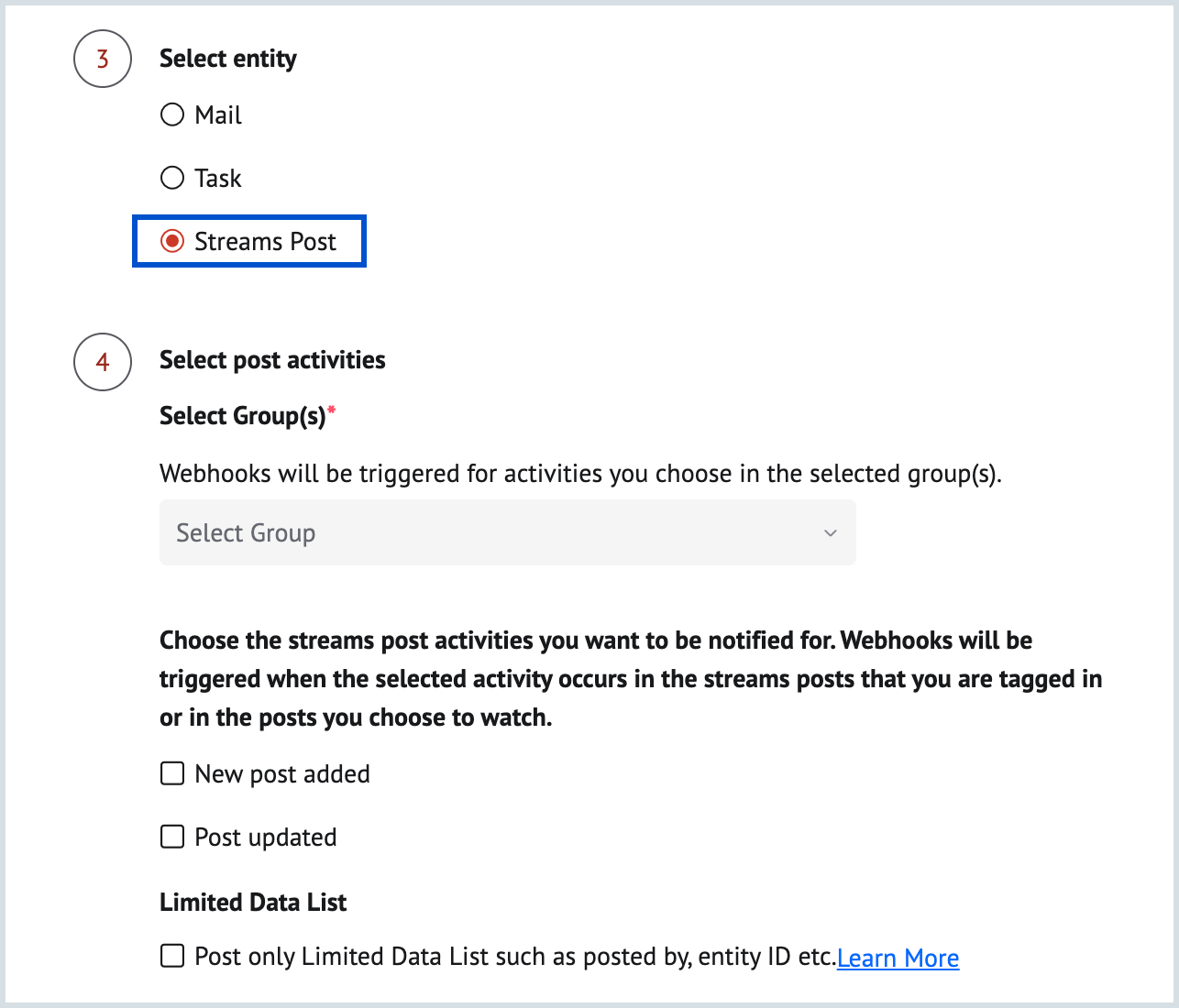

  5. After filling in the Custom Username and Webhook URL, you have to select an entity, i.e mail or tasks, that you want to configure.
    • ​​Custom Username - The name given to the webhook configuration
    • Webhook URL - URL obtained from the incoming webhook configuration in the third-party app. Updates triggered from either the Mail or Tasks will be posted to this URL.
  6. If you select Mail, then you can skip the next step. You should choose a Mail condition type and a condition for which you need the webhook to be triggered.
    • Condition type - Choose how you want to run the filter actions. To learn more about the filters, click here.
    • Conditions - After selecting the Mail condition type, provide the desired condition. For example, the condition can be From contains rebecca@zylker.com. To learn more about the Mail conditions, click here.
    • Tagged emails - If you select tagged emails, you have to choose the tags from the Select tag(s) drop-down. You can choose a maximum of 3 tags only.
      • The Tagged emails condition hand-picks only those emails under specific tags (Newsletter, Marketing, etc.). Choose this option if you want emails marked with specific tags to trigger the webhook. After you've selected the tags, whenever an incoming email is marked with any of the selected tags or when you mark an email later with one or more of those selected tags, the webhook will be triggered. However, you can't specify additional Conditions if you choose Tagged emails.
    • Meta Only - If you check this option, only the Subject, From, To, and time details of the email will be posted in the third-party application.
  7. If you select Tasks, you should choose a Task activity for which you need the webhook to be triggered and notify you. Whenever the selected activity occurs in a task assigned to you, the webhook will be triggered.
    • Select task activities- Choose the activities for which you wish to be notified. Once chosen, only those selected activities in the tasks assigned to you will trigger events in the third-party application.
    • Select Group(s)- For tasks, you can select particular Streams groups, and the webhook will be triggered only when the task activities you chose occur in those selected groups. You can choose a maximum of 3 groups only.
    • Meta Only- If you check this option, only the Meta data of the task details will be posted in the third-party application. The difference between Full Data and Meta data of the Task details is given in the table below.
      Full DataMeta Only DataDescription
      assigneeassigneeUser Id (Zuid) of the assignee
      assigneeNameassigneeNameNickname of the assignee
      displayNamedisplayNameFull name of the assignee
      titletitleTitle of the task
      summary Description of the task
      entityIdentityIdId of the task
      entityTypeentityTypeRepresents the entity. For example, 3 denotes it's a task entity.
      categoryId Id of the category
      categoryName Name of the category
      dueDatedueDateDue date value in numeric values.
      priority Priority of the task mentioned in the number
      parentTaskId Task Id of the parent (if the triggered task is a sub-task)
      nameSpaceIdnameSpaceIdid of the group
      groupNamegroupNamename of the group
      triggerZuidtriggerZuidUser Id of the account that triggered the action
      statusstatusStatus mentioned in number
      statusName Status name of the task
      actionactionName of the task action which is triggered

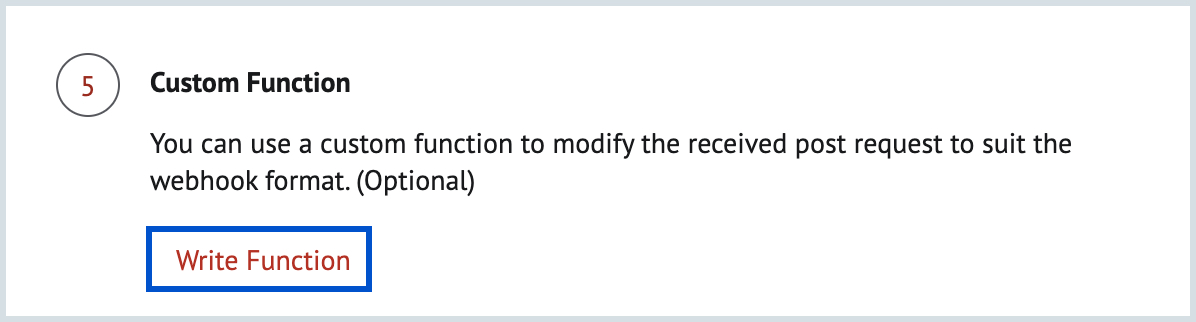

  8. Click on Write Function under Custom Function if you wish to modify the data in the post request to suit the webhook format as per your needs. Once you create the custom function, click on Select custom function to select the function.
  9. Click Save.

Note:

  • If the webhook URL used in the configuration is unresponsive for an extended period, the outgoing webhook will automatically be disabled.
  • When you save an outgoing webhook configuration for the first time, a POST request is initiated. The configuration will be saved only if a 200 response is received for the POST request.

WEBHOOK RESPONSE SAMPLE:

{
     "summary": "Hi Rebecca, I have shared the slide deck for our product pitch meeting on Friday. Please take a look and do let me know if you have any suggestions. Regards, Paula",
     "sentDateInGMT": 1560866021000,
     "subject": "Marketing - Product pitch",
     "messageId": 1560840837125110000,
     "toAddress": "\"Rebecca A\"<rebecca@zylker.com>",
     "folderId": 3881227000000013000,
     "zuid": 647772765,
     "ccAddress": "",
     "size": 55503,
     "sender": "Paula",
     "receivedTime": 1560840837126,
     "fromAddress": "paula@zylker.com",
     "html": "<meta /><div><div style=\"font-family:&quot;Trebuchet ms&quot;, Arial, Helvetica, sans-serif;font-size:12pt;\"><div>Hi Rebecca,<br /></div><div><br /></div><div>I have shared the slide deck for our product pitch meeting on Friday. Please take a look and do let me know if you have any suggestions.<br /></div><div id=\"\"><div><img src=\"/zm/ImageDisplay?f=1.png&amp;mode=inline&amp;cid=0.28869215260.3894179596053002321.16b695cdb49__inline__img__src&amp;\" width=\"145\" height=\"145\" style=\"float:left;\" /><br /></div><div><br /></div><div><br /></div><div>Regards,<br /></div><div>Paula<br /><br /></div></div><br /><br /><div style=\"clear:both;\"></div></div><br /></div>",
      "IntegIdList": "34000000580271,"
}

Securing Webhooks

Securing your webhooks is recommended as it helps you determine if the requests have actually originated from Zoho Mail. To enable you to verify the webhooks, Zoho Mail adds a signature to all its webhook requests. This adds an extra layer of security to your webhooks.

Validating Webhook requests

Each webhook request contains a signature for verification purposes. The key that is used to sign the message is the x-hook-secret. This secret is obtained only from the header of the very first request of the webhook. The x-hook-signature is found in the HTTP header of all requests. The header is a base 64 digest of an HMAC SHA256 hash. The hashed content should be the binary representation of the full request body.

In order to verify the signature, you will be required to generate a signature of your own using the x-hook-secret. You can then compare the generated signature with the signature in the request header to check the authenticity of the request.

The sample code for checking the validity of a request is given below:

JAVA:

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import javax.servlet.http.HttpServletRequest;


//method to validate webhook request
boolean verifyWebhookRequest(String secret, String payload, HttpServletRequest request) throws Exception
{
          Mac mac = Mac.getInstance("HmacSHA2256");
          SecretKeySpec secretKey = new SecretKeySpec(secret.getBytes(), "HmacSHA256");
          mac.init(secretKey);
          String signature = Base64.encodeBase64String(mac.doFinal(payload.getBytes()));
          return signature.equals(request.getHeader("X-Hook-Signature"));
}


JAVA SCRIPT:

Method to verify the payload by hashing:

function verifyWebhookRequest(secret, payload, xHookSignature) {
  const crypto = require('crypto');
  const hmac = crypto.createHmac('sha256', secret);
  const signature = hmac.update(payload).digest('base64');
  return signature === xHookSignature;
}

Creating server to listen the Webhook request and to get the request body:

const server = http.createServer((request, response) => {
  if (request.method === 'POST') {
    let body = '';
    request.on('data', chunk => {
      body += chunk.toString();
    });
    request.on('end', () => {
      // secret is x-hook-secret while registering webhook to URL
      let isRequestValid = verifyWebhookRequest(secret, body, request.headers["x-hook-signature"]);
      response.end('OK');
    });
  }
});
