Create Widgets | Developer

A widget is a component that adds custom features or integrates third-party services with Zoho ERP. If you need to access a service or feature that is not available in Zoho ERP, you can create a widget and embed it in the app.

Set up Runtime Environment

To create a widget you’ll first have to set up a runtime environment. Here’s how:

Install Node.js. If you’ve already installed Node.js, go to the next step.

Insight: Zoho ERP supports Node.js versions 7.1.0 and above. You can test it by running the node -v command in your terminal.

Install the ZET (Zoho Extension Toolkit) globally by running this command in your terminal:
```
 npm install -g zoho-extension-toolkit
```

Notes: Install version greater than 0.23.15.

Insight: The -g command in the above code denotes global installation. This allows you to run ZET commands from anywhere on your machine.

Build Widget

Once you have set up the runtime environment successfully, you can start building your widget. Here’s how:

Run zet init in your terminal.
Choose ERP from the list of services.
Specify the service you are embedding. Let’s say, you want to embed the Hello World widget.
A project template directory consisting of all the necessary folders, dependency node packages, and files will be created automatically.

A widget will be created.

Insight: Run cd [widget name] in the terminal to navigate to the widget’s directory. The plugin-manifest.json contains meta information about the widget. You can configure the widget details, location, used connections, and more.

Configure Widget

Once you’ve created the widget, you can configure it in Zoho ERP using a few parameters. Here’s how you can configure the Hello World widget in the sidebar of the customer creation page:

Edit the plugin-manifest.json file based on the HTML file path and location as per your needs.
The location indicates where the widget will be displayed. In this case, the location will be the customer creation sidebar (customer.creation.sidebar).
The url is the HTML file path that loads initially. In this case, /app/widget.html is used.
The logo is the file path for the widget logo image. In this case, /app/img/logo.png is used.

{
   "locale": [
     "en"
   ],
   "service": "ERP",
   "modules": {
     "widgets": [
       {
         "location": "customer.creation.sidebar",
         "name": "Hello World",
         "url": "/app/widget.html",
         "logo": "/app/img/logo.png"
       }
      ]
 },
   "config": [],
   "usedConnections": []
}

Here’s an HTML snippet of the Hello World widget:

 <!--app/widget.html -->
<!DOCTYPE html>
<html>

<head>
 <meta charset="UTF-8">
 <title>Hello World</title>
      <script src="https://static.zohocdn.com/zohofinance/v1.0/zf_sdk.js"></script>
</head>

<body>
   <h4>Welcome <i id="username"></i> to zoho finance widgets.</h4>
  <script>
 	window.onload = function () {
      // Initializing SDK.
      ZFAPPS.extension.init().then( (App) => {
          ZFAPPS.get("user.name").then((response) => {
            let userElement = document.getElementById("username");
            userElement.innerHTML = `Mr/Mrs. ${response['user.name']}`;
          });
        });
      };
     </script>
</body>
</html>

Here, https://static.zohocdn.com/zohofinance/v1.0/zf_sdk.js is the SDK URL. It contains the global object ZFAPPS. It’ll help you communicate with the Zoho Finance products.

To make the global object work, you’ll have to initialize it after the iframe loads. Inside the initialization block, ZFAPPS’s get API has been used to get the user name from Zoho Finance applications.

Test Widget

Once the widget is created, you can test it on your local machine. To test:

Run zet run command in your terminal.
Open this URL in your browser to verify that the widget runs on the local server: https://127.0.0.1:5000/plugin-manifest.json

Next, you’ll have to switch to developer mode to test the widget. Here’s how:

Go to your Zoho ERP organization and navigate to Settings.
Go to Developer Space and select Widgets.
Toggle the button to enable Developer Mode.

Navigate to the location where the widget has been configured and refresh the window to render the widget. A red dot will be displayed next to the development widget.

If you want to go back to the normal mode, toggle the button and turn it off.

Validate Widget

Once you’ve tested the widget, the next step is to validate it. Here’s how:

Run zet validate in the terminal to check if the guidelines specified in the plugin-manifest.json file are met.

Once the validation is successful, you can start packing the widget files. If not, make the necessary changes and run the command again.

Pack Widget

To upload a widget to the Zoho Marketplace, you’ll have to pack it first. Not all the files of your project directory are required while uploading. Run zet pack to zip the essential files and folders, such as the app directory and plugin-manifest.json.

Notes: The ZIP file will be generated under your_project/dist (SampleWidget/dist/SampleWidget.zip).

Upload Widget

Once the ZIP file is ready, you can upload the widget to Zoho ERP for other users in your organization to use. Here’s how:

Go to the Sigma portal, and click Extensions on the left sidebar.
Hover over the extension for which you want to upload the ZIP file and click the Edit icon. You’ll be redirected to the Zoho ERP Developer Portal.
Click the Configure tab at the top.

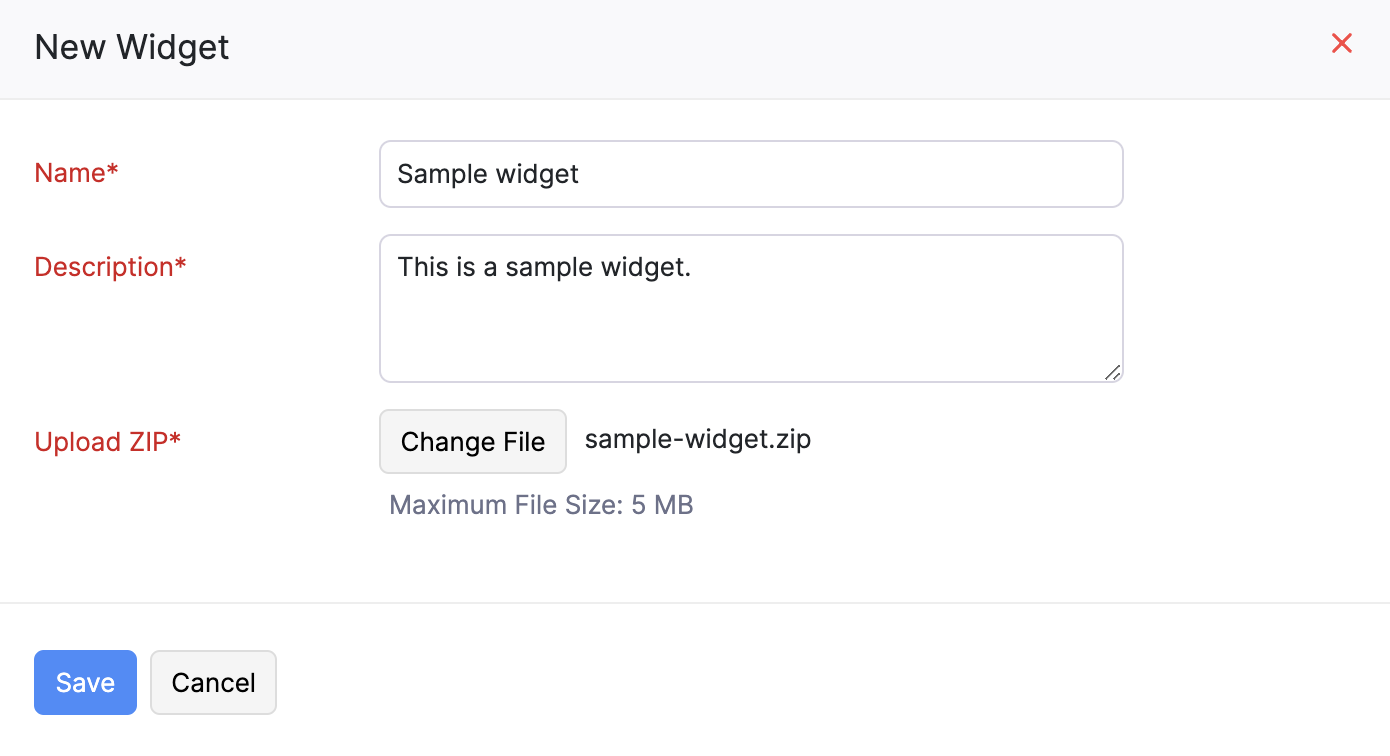

Click Upload Widget in the top right corner.
Enter the widget’s Name and provide a Description.
Click Attach From Desktop next to Upload ZIP and upload the ZIP file which was generated using the zet pack command.
Click Save.

Now, you can access the widgets in the specified locations.

Notes: Ensure that the ZIP file is not empty and that the ZIP file’s name does not contain numbers or special characters.
