Overview

Custom APIs configured in Creator can be invoked from within a widget. This allows you to perform CRUD operations and custom functionalities in your applications.

Before continuing, make sure to check out everything you need to know about custom APIs.

Request Details

Syntax

Use the below logic in the widget's JS file to invoke custom APIs as shown below.

ZOHO.CREATOR.DATA.invokeCustomApi(config).then(function (response) {console.log(response)
});

Syntax Details

The syntax holds:

  • <config> (object) - The configuration required to call a custom API. This configuration includes the following parameters.
NameTypeDescription
api_namestringLink name of the custom API that is being invoked. Retrieve the API link name using the endpoint URL of the custom API:
https://www.zohoapis.com/creator/custom/<workspace_name>/<api_name>
workspace_name
(Optional)
stringLink name of the workspace in which this custom API will perform actions. Retrieve the workspace name using the endpoint URL of the custom API: https://www.zohoapis.com/<workspace_name>/<api_name>
http_methodstring

The request method that specifies the type of action that is to be performed. Make sure to specify the same method that was chosen while creating the custom API.

Possible values: GET, POST, PUT, DELETE

content_type
(Optional)
string

Format and structure of data being sent in a request while the custom API is performed. This parameter is applicable only for POST and PUT request methods.
Possible values: application/json (default value), multipart/form-data

Note:

  • As of now, file data can only be sent when application/json is specified.
  • Regardless of the specified value for content_type, the form data should be in JSON format. If multipart/form-data is specified, the JSON will then be converted into this format in the backend.
payload
(Optional)
object

Form data is supplied in JSON format to include and update records in the form. This parameter is applicable only for POST and PUT request methods.

The keys in the key-value pairs will be the arguments specified while you create the function based on which the custom API works.

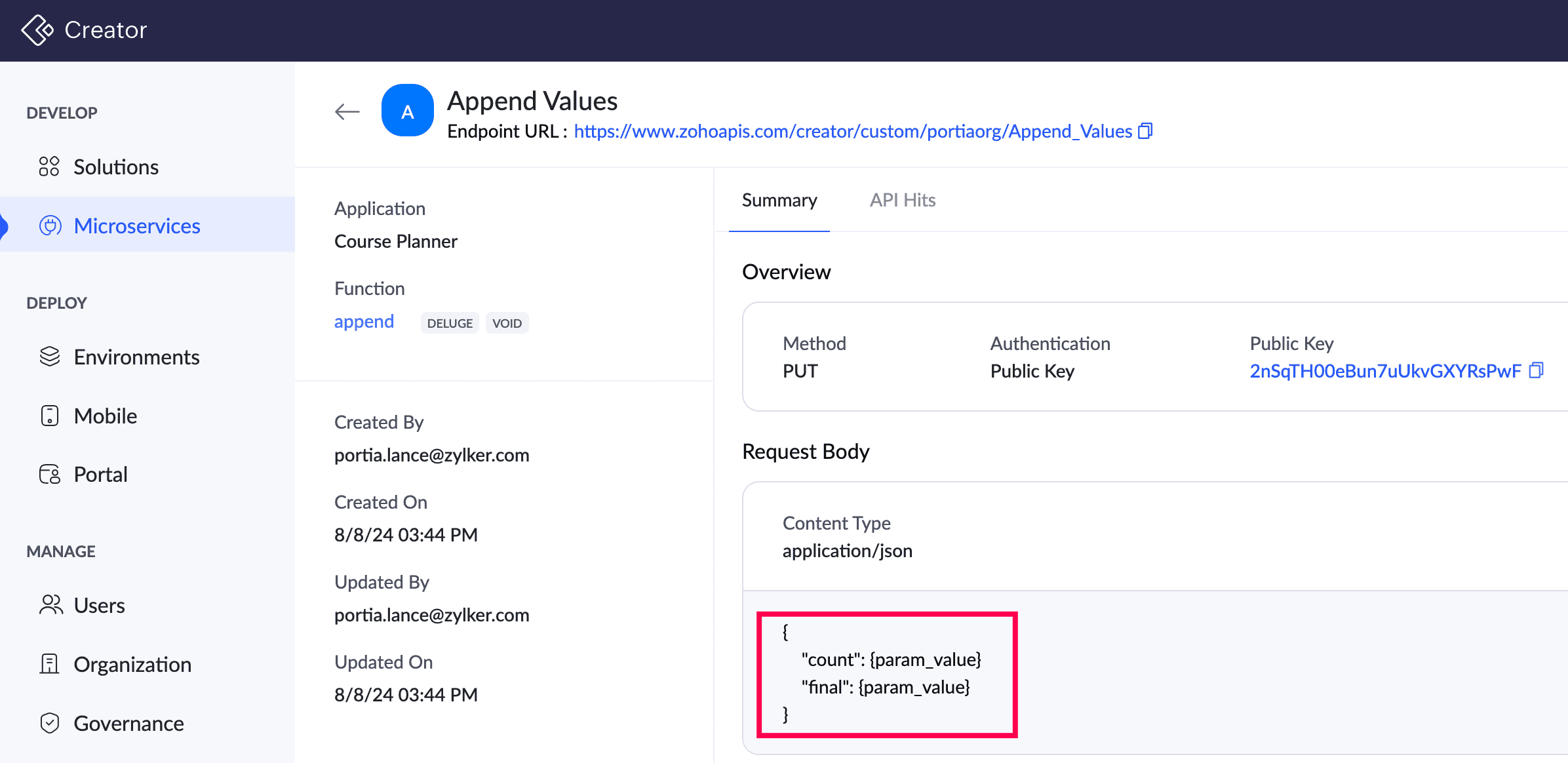

Retrieve the arguments from the Summary section when the required custom API is accessed from the Microservices module in your Creator application.

query_params
(Optional)
-Data can be sent as query parameters appended to the end of the URL. This parameter is applicable only for GET and DELETE request methods.
public_key
(Optional
(Mandatory if custom API is configured with Public Key authentication)
string

The public key value received after configuring the custom API with a Public Key  authentication. Choosing this authentication allows all users of the organization to invoke the custom API.

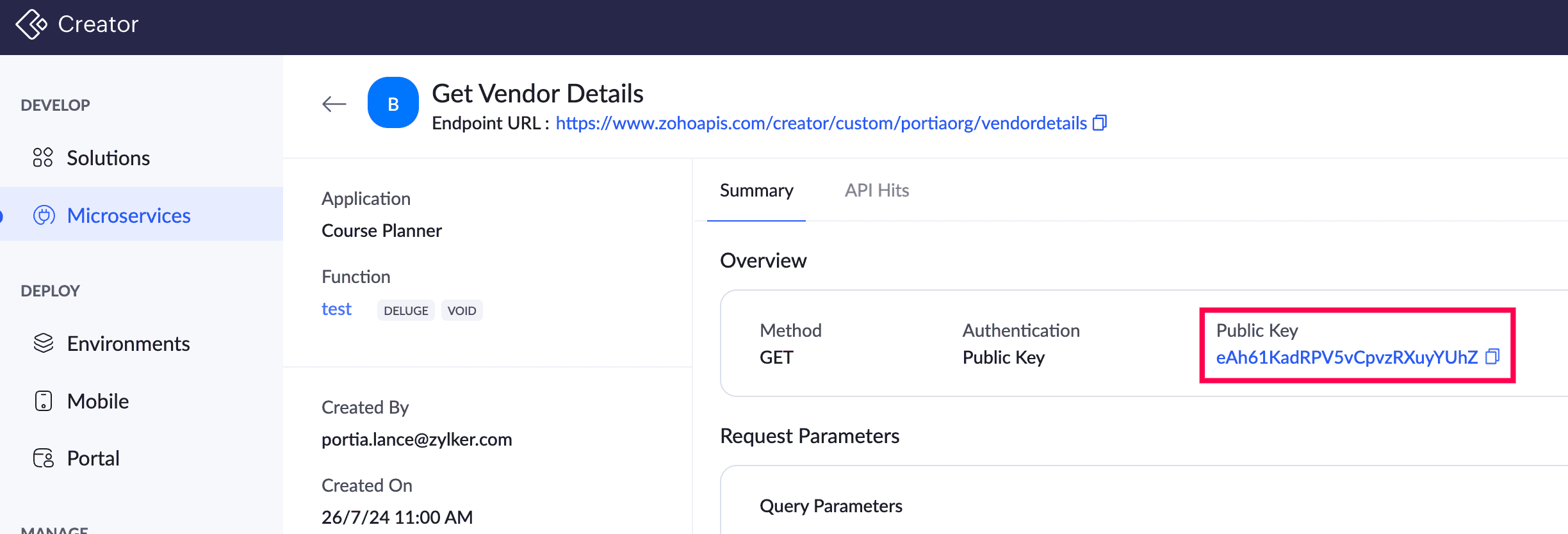

Retrieve the public key from the Summary section when the required custom API is accessed from the Microservices module in your Creator application.

Possible Errors

Refer to this page for the complete list of error codes and messages.
