Single-line Input Type : File Upload

The file upload field in Cliq forms allows you to attach upto a maximum of 10 files. Take a look at the list of attributes passed for this input field type is given below. All mandatory attributes are indicated with a * and the maximum characters allowed is provided with the Data Type.

Attribute Name	Data Type & Limit	Description
type*	string Value should be file	The type of single line text input field.
placeholder*	string (100)	Sample field value displayed to the user that describes the expected value of the input field.
name*	string (50)	A unique identifier for the field. On form submission, the value defined for this key will be available in the function associated with the form.
label*	string (50)	Describes the field display name.
hint*	string (100)	Provides a brief description of the field's purpose and the expected input.
mandatory	boolean	Define if the field's requisite is mandatory or not. Default value considered is true.
multiple	boolean	Define if your field should be a single select or multi select field. For all multi select fields, multiple should be set as true.
max_selections	integer Maximum selections allowed: 10	Defines the number of options that a user can choose from the drop-down. Note: Value for this field defaults to 1 in case of single select drop-downs.
max_size	integer Value should be in KB ranging from 1- 51200.	Defines the maximum file size limit for files to be uploaded

Syntax

{
  "hint": "",
  "name": "",
  "label": "",
  "placeholder": "",
  "type": "file",
  "mandatory": true, //boolean, default value is set as true
  "multiple": true, //boolean, default value is set as true
  "max_selections": ""
}

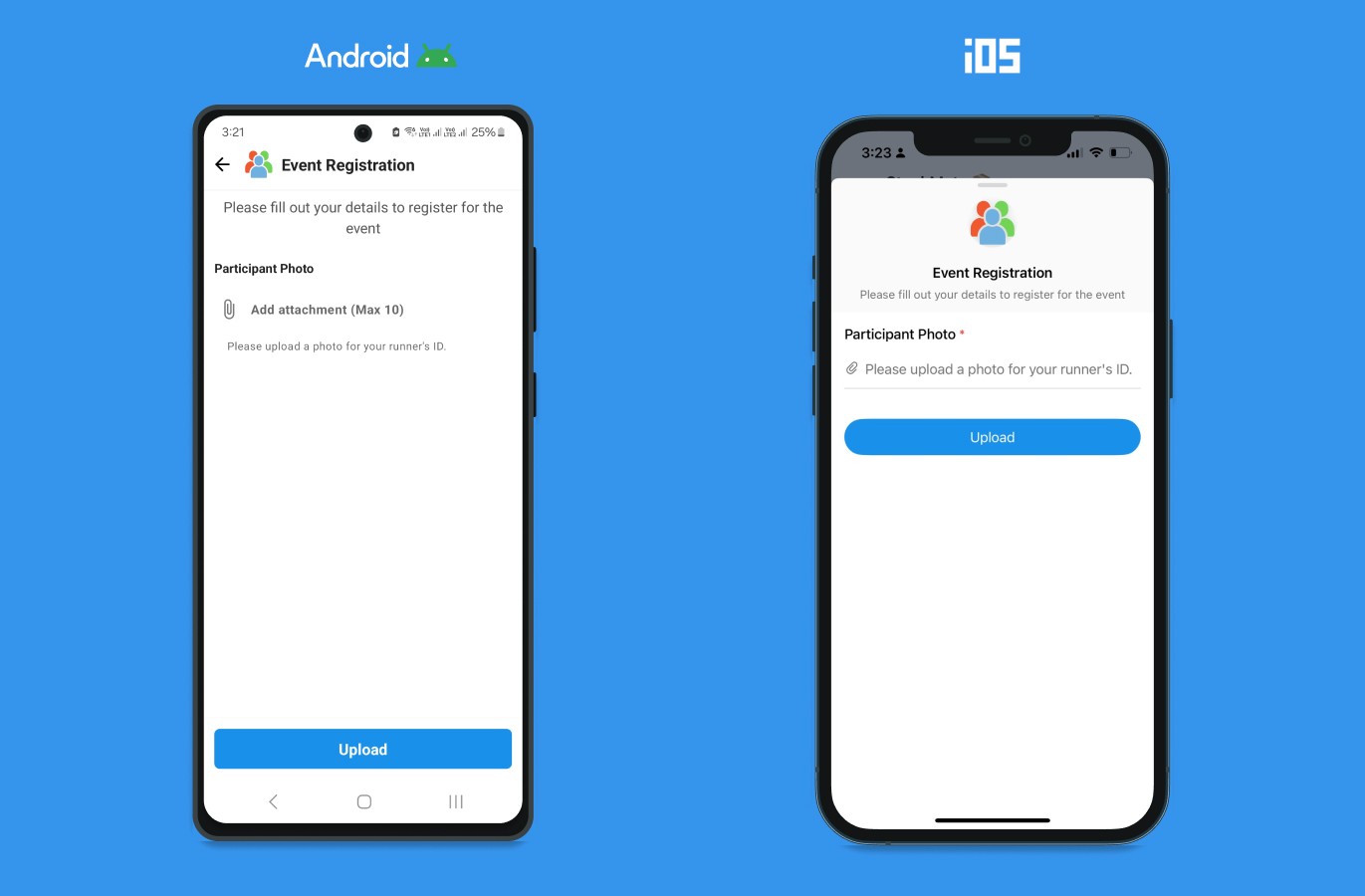

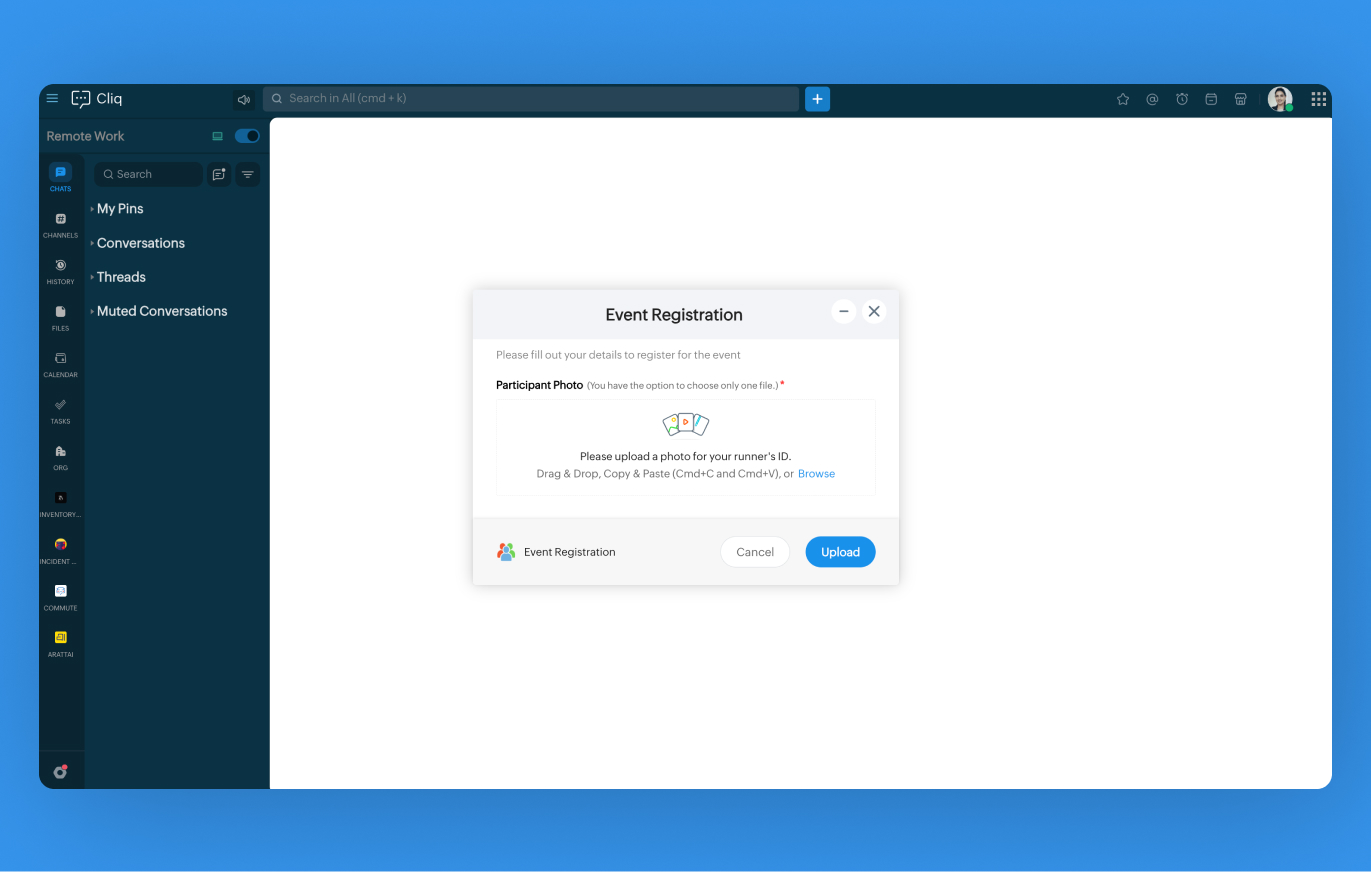

Code Sample

return {
   "type":"form",
   "title":"Event Registration",
   "name":"survey",
   "hint":"Please fill out your details to register for the event",
   "button_label":"Upload",
   "inputs":[
      {
         "label":"Participant Photo",
         "name":"file",
         "placeholder":"Please upload a photo for your runner's ID.",
         "mandatory":true,
         "type":"file"
      }
   ],
   "action":{
      "type":"invoke.function",
      "name":"function"
   }
};
