Automation

Automation allows you to create a set of rules for modules of Zoho Books based on which appropriate actions would be performed. A good example would be the case where a congratulatory e-mail is sent automatically to the team members when an estimate for goods worth over $1000 gets accepted by a client.

In the next few steps, you will be learning about:

To get started with workflows, navigate to > Automation.

Workflow Scenarios

Setting up a new workflow rule

Email Alerts

Field Updates

Webhooks

Events

Custom Functions


Setting up a new workflow rule

A workflow rule consists of  actions that comprises of Email Alerts, Field Updates, Events and Webhooks that play an essential role in executing a task. A workflow rule may employ one or more actions to accomplish the task. To set up a workflow rule in Zoho Books, navigate to > Automation> Workflow Rules.

Name your workflow

workflow name

Field Description
Workflow Rule Name Give a unique name for the workflow rule.
Module Select the module for which you wish to create a workflow.
Description Give a small description for your workflow rule.

Choose when to trigger a workflow

when trigger workflow

You can choose when to trigger the workflow based on the parameters you select in the following fields.

Workflow Type

There are two types of workflows:

workflow type

Event Based: If the workflow is Event Based, then the workflow is triggered when a module is:

When a module is Edited or Created or Edited, additional fields appear.

when to trigger

Field Description
Execute the workflow when There are 3 options to choose from
-When any field is updated.
-When any selected field is updated.
-When all selected field are updated.
If you select When any selected field is updated or When all selected fields are updated in the drop down, an additional box will appear where you can select any 3 fields of the module.
Just Once or Overtime? Just Once- The workflow would be executed when the criteria is met for the first time.
Everytime- The workflow would be executed everytime the criteria is met.

Date Based:
If the workflow is Date Based, additional fields appear.

when trigger date based

Field Description
Date of Execution Select the workflow to be triggered on any number of days before or after Module Date, Expiry Date or Created Time from the drop down.
date based execution
Execution Time You may choose the exact time of execution by selecting the corresponding hh or mm .
Execution Cycle You may choose the frequency of triggering a workflow by choosing Once, Monthly or Yearly from the drop down.
execution cycle

Filter the triggers

Filter the triggers section allows you to set one or more conditions based on which the action will be executed.

Filter The Trigger

Field Description
Condition The filter will be triggered based on the criteria you set. You can also add multiple criteria by clicking on + Add Criteria based on which the workflow rule will be executed.
Trigger Condition
The condition for the next criteria may be AND or OR depending on whether you wish to include both or either one of the criteria. Also, you can change the criteria pattern as you want by selecting Change Criteria.
Field Attributes The field is used to select an attribute from the list that broadly covers the terms that are related to the module.
Module List
Rules Select the rules based on which the system should filter the trigger. If the field has alphanumeric values, the rules are,
Text Rules
If the field has only numerical values, then the rules are,
Numeric Rules
Value Field Enter the value of the attribute for which the filter must be applied.

Editing Criteria Pattern:

You can edit the criteria pattern to suit your requirements by selecting Change Criteria. The editor allows you to define a pattern of your choice using simple AND/OR logic. For example, if you wish to trigger the workflow rule When Estimate Number is 1 AND either Estimate Status isn’t Invoiced OR Total is equal to 500,

Change Criteria

The pattern is (((1)AND 2) OR 3). If you feel the criteria pattern does not match your requirement, you can edit it to be (1AND (2 OR 3)).

Change Criteria Pattern

Click Save to continue.

Note: You can have a maximum of 10 criteria for each Workflow Rule.

Actions

Once the rules have been set, the actions to be taken upon encountering the conditions has to be decided. You can customize the actions to suit your business needs and program it to act immediately or at a particular time.

Actions

Immediate Actions:

Field Description
Type Select one of the three types of actions,
-Email Alerts
-Field Updates
-Webhooks
You can also add multiple actions by clicking on +Add New Actions.
Name The field should contain the name of the Email Alerts, Field Updates or Webhooks. For example, in the case of an email alert, you can either pick the ones from the list you have already created or you can add a new one by selecting + Add New Email Alert.
Email Alert Ex
Follow the same steps for Field Updates and Webhooks.
Details The details of the action is displayed here.

Time Based Actions:
If you wish to schedule actions for a particular time, select the check box next to Would you like to add time based actions?. This will display additional fields to enter the desired time.

Time Based Action

Field Description
Execution Time Enter the desired number of days before or after,
-Rule Trigger Date
-Module Date
-Expiry Date
-Created Time
-Modified Time

Next,select the type of action that you wish to take. It can be an Email Alert, Field Update or a Webhook. You can also add multiple time based actions by selecting +Add New Time Based Action.

Note: You can add a maximum of 5 time based actions. Also, each time based action can have a maximum of 5 actions.

Finally, click Save to create the workflow rule to implement it for the modules in Zoho Books.

Other Actions

You can also mark your workflow rules as Active or Inactive. To do so, hover the cursor and select mark as active or mark as inactive. To delete the workflow rule, click on the Trash icon.

Mark Delete Workflow

Edit a workflow rule:
You can edit a workflow rule by simply clicking on one of the workflow rules from the list or by hovering over a workflow rule and select edit.

Edit Workflow

Filter workflow rules:
To filter the workflow rules list, follow these steps:

You can also filter workflow rules based on whether they are active or inactive. Based on your selection, the corresponding workflow rules will be displayed as a list.

Workflow Filter

Note:


Email Alerts

The following steps will explain how to set up an email alert for any module in Zoho Books.

Creating a new Email Alert:
To set up an email alert, navigate to > Automation > Email Alerts and click on + New Email Alert.

New Email Alert

Field Description
Name Give a unique name for the email alert.
Module Select the module for which you wish to create an email alert.
Email Template You can pick a template from the drop down or click on + Add New Email Template if you wish to create a new one.
email temp drop
Email Recipients Pick contacts from the drop down, to whom you wish to send the email alerts.
Additional Recipients If you wish to send out email alerts to more people, enter their email addresses separated by a comma. Please note that you can add a maximum of 10 additional recipients.

Click on Save to create a new email alert. You can now select one of the many email alerts created, from the drop down, to notify you when a workflow is triggered.

Other Actions

Delete an email alert:
To delete an email alert, hover the cursor next to an email alert on the list and click on the Trash icon.

Delete email alert

Filter email alerts:
To filter the email alerts list, follow these steps:

Based on your selection, the corresponding email alerts will be displayed as a list.

Filter Email Alert

Note:


Field Updates

The option of Field Updates allows you to automatically make changes to a field of a particular module for which the workflow has been triggered. For example, you can choose to automatically extend the expiry date to 30th June 2015 of an estimate if the total amount is greater than or equal to $500. In this case, the Expiry Date field is changed to the above date if the Total field is “>=“500.

To set up a field update, navigate to > Automation > Field Updates and click on + New Field Update.

New Field Update

Field Description
Name Give a unique name for the field update.
Module Select a module for which you wish to create a field update.
Update Select the field in which you wish to make changes upon triggering a workflow from the drop down.
-Reference #
-Expiry Date
-Sales Person
-Notes
-Terms & Conditions
-Adjustment Description
Enter the value of the field in the corresponding box. If you wish to update the field with an empty value, check the box Update with empty value?.
Update Empty Value

Click on Save to create a new field update. You can now select one of the many field updates created to implement changes when the workflow is triggered.

Other Actions

Delete a field update:
To delete a field update, hover the cursor next to a field update on the list and click on the Trash icon.

Delete Field Update

Filter field updates:
To filter the field updates list, follow these steps:

Based on your selection, the corresponding field updates will be displayed as a list.

Filter Field Update

Note: You can create a maximum of 3 field updates for each workflow rule.


Webhooks

Webhooks facilitates communication with third-party applications by sending instant web notifications every time an event occurs in Zoho Books. With Webhooks, you can configure both  HTTP & HTTPS URLs and associate them in workflow rules to automate the entire notification process.

For example, you can associate your Zoho Books account with an SMS provider with a webhook to thank your customer by sending a message automatically if the total amount paid exceeds $1000.
For general information about webhooks, please refer to webhooks.org.

To set up a webhook, navigate to > Automation > Webhooks and click on + New Webhook.

New Webhook

Field Description
Name Give a unique name for the webhook.
Module Select the module for which you wish to create a webhook.
Description Give a small description of the webhook.
URL to notify Enter the URL of the external service provider’s API. For example, if you want Zoho Books to add or change data in Zoho CRM, the URL would be https://crm.zoho.com/crm.
Method Specify the function you want to call at the external service:
POST: Requests that data sent must be considered as new.
PUT: Requests that data sent should be considered as a modified version of the one already present.
DELETE: Requests that the data must be deleted.
Custom Parameters You can add custom parameters. in the webhook such as Auth Token, Security Token, API Key etc. based on which the URL will be appended. Enter the required parameter under Parameter Name and the corresponding value under Parameter Value. If you wish to add multiple parameters, select + Add Custom Parameters.
Entity Parameters Append All Parameters- Select this option to send all parameters from Zoho Books to the external service.
Append Selected Parameters- Select this option to send selected parameters from Zoho Books to the external service.
URL Preview The URL generated for this webhook will be displayed here.

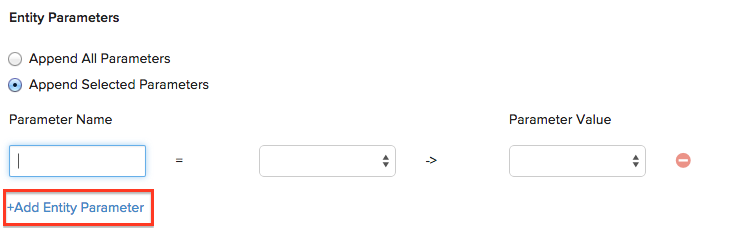

Entity Parameters

There are two options available while communicating data with a third party application, namely,

Entity Parameter

Field Description
Parameter Name Enter the name of the parameter that you wish to append and select the module in the corresponding box.
Parameter Value Select the desired parameter from the drop down.

Note: You can add multiple entity parameters by selecting +Add Entity Parameter. You can add a maximum of 10 entity parameters.

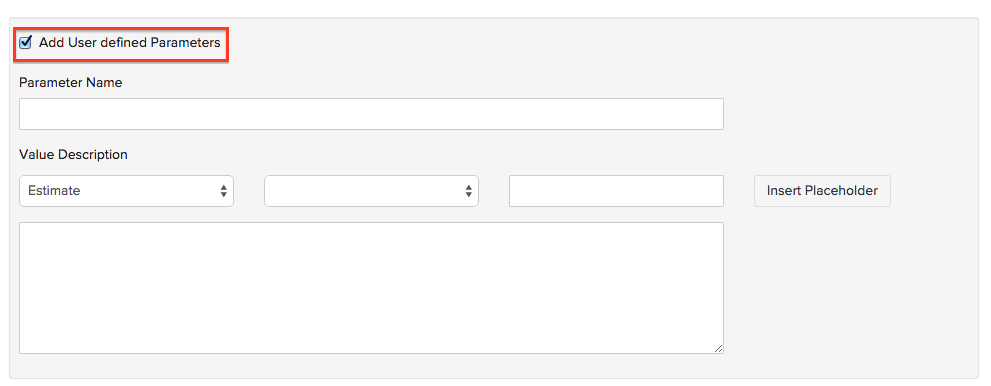

User Defined Parameters

If you wish to add user defined parameters while accessing an external service, select the box Add User Defined Parameters.

User Defined Parameters

Field Description
Parameter Name Enter the name of the parameter which you wish to update.
Value Description Select a module of Zoho Books from the first drop down and select the corresponding parameter from the drop down of the adjacent box. This will generate the placeholder string for that parameter.
You can enter the custom code in different formats. For example, if you wish to send a JSON or XML string with parameter values from an estimate, you can use the user defined parameters and placeholders format.
If you wish to include the placeholder in the string, select Insert Placeholder.

Click on Save to create a webhook. You can now select one of the many webhooks created to connect with an external service provider when a workflow rule is triggered.

Other Actions

Delete a webhook:
To delete a webhook, hover the cursor next to a field update on the list and click on the Trash icon.

Delete Webhook

Filter webhooks:
To filer the webhooks list, follow these steps:

Based on your selection, the corresponding webhook will be displayed as a list.

Filter Webhook

Note:


Events

The Events section in Zoho Books enables you resend/check the status of your webhooks.

To check the status of your webhook,

events Webhook

To resend a webhook,

events Webhook


Custom Functions

Custom functions in Zoho Books allows you to write small pieces of code to automate your business processes. Be it providing a special discount on your customers’ invoice, or adding a late fee when an invoice becomes overdue, all you have to do is write a piece of code using Deluge script and link it to a workflow rule and automation of the process will be taken care of.

What is Deluge?

Deluge(Data Enriched Language for the Universal Grid Environment) is an online scripting language integrated with Zoho Creator. It enables users to add logic to the application, incrementally, making it more powerful and robust.

To know about Deluge, refer the Deluge Reference Guide.

If you wish to learn Deluge by writing code samples, click here.

Creating and Executing a Custom function

To setup a custom function,

New Custom function button

Custom function form

Now, the next step is to create a workflow rule using the newly created custom function.

Now, whenever the criteria is met, the workflow rule will be triggered, which in turn will trigger the custom function.

Default fields

As of now, custom functions support User, Organization, Estimate, Invoice, Sales Order, Purchase Order, Customer, Recurring Invoice, Expense, Bill, Recurring Bill, and Item modules.

These modules will have the following fields from which you can get the necessary paramters for your custom function.

user

The user field supports the following paramaters:

Key Fields Description
name Name of the user
zuid ZUID of the user
organization

The organization map supports the following fields:

Key Fields Description
organization_id Your organization ID
name Organization name
time_zone Time zone of your organization
language_code Organization’s language
date_format Your organization’s date format
currency_id Currency ID
currency_code Currency code
currency_symbol Currency symbol
address Organization address
phone Organization’s contact number
fax Fax number
website Organization URL
email Email address
portal_name Portal name of your organization

Sample map:

{
	"time_zone": "Asia/Calcutta",
	"language_code": "en",
	"currency_id": "7605000000000099",
	"phone": "99999999999",
	"fax": "check",
	"website": "",
	"email": "charles@zylker.com",
	"address": {
		"zip": "624001",
		"country": "India",
		"city": "New Delhi",
		"street_address2": "Block 15",
		"street_address1": "6/35 Garden Lane,",
		"state": "Delhi"
	},
	"organization_id": "12345678",
	"name": "Zlyker Industries",
	"date_format": "dd MMM yyyy",
	"currency_symbol": "Rs.",
	"portal_name": "zylkerindustry",
	"currency_code": "INR"
}
estimate

The estimate map supports the following fields:

Key Fields Description
estimate_id Estimate ID
estimate_number Your estimate number
date Estimate date
reference_number Reference number of your Estimate
status Status of your estimate
customer_id ID of the customer who is assigned to the estimate
customer_name Your customer’s name
currency_id Currency ID
currency_code Currency code
currency_symbol Currency symbol
exchange_rate Exchange rate involved in the estimate
expiry_date Expiry date of the estimate
discount_amount Discount amount
discount Discount
shipping_charge Shipping charge entered in the estimate
adjustment Adjustments
sub_total Sub total of the estimate
total Estimate total
tax_total Total tax amount in the estimate
billing_address Billing address of the customer
shipping_address Shipping address of the customer
notes Notes
terms Terms and conditions
custom_fields Estimate custom fields
salesperson_id ID of the salesperson
salesperson_name Name of the salesperson

Sample map:

{
	"total": "12000.0",
	"terms": “checking",
	"estimate_id": "7605000000320001",
	"date": "2016-06-03",
	"estimate_number": "EST-000026",
	"shipping_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": “Fax Number”
	},
	"salesperson_name": “Salesperson”,
	"adjustment": "0.0",
	"currency_symbol": "Rs.",
	"salesperson_id": "7605000000336089",
	"currency_code": "INR",
	"shipping_charge": "0.0",
	"custom_fields": [
		{
			"customfield_id": "7605000000190011",
			"is_active": true,
			"show_in_all_pdf": false,
			"value_formatted": "Check-6",
			"data_type": "autonumber",
			"index": 1,
			"label": "auto number",
			"show_on_pdf": false,
			"value": "Check-6"
		}
	],
	"currency_id": "7605000000000099",
	"exchange_rate": "1.0",
	"status": "invoiced",
	"sub_total": "12000.0",
	"customer_name": “Customer”,
	"discount_amount": "0.0",
	"discount": "0.0",
	"tax_total": "0.0",
	"reference_number": “Ref number”,
	"notes": "Looking forward for your business.",
	"expiry_date": "2016-06-03",
	"customer_id": "7605000000258011",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	}
}
invoice

The invoice map supports the following fields:

Key Fields Description
due_date Invoice due date
payment_expected_date Expected payment date for the invoice
reference_number Reference number of the invoice
customer_id Customer ID
customer_name Name of the customer who is assigned to the invoice
currency_id Currency ID
currency_code Currency code
currency_symbol Currency symbol
exchange_rate Exchange rate involved in the invoice
discount_amount Discount amount involved in the invoice
discount Discount involved in the invoice
shipping_charge Shipping charge entered in the invoice
adjustment Adjustments
sub_total Sub total of the invoice
tax_total Total tax amount in the invoice
total Total amount
balance Balance
price_precision Number of Decimal places
billing_address Billing address of the customer
shipping_address Shipping address of the customer
notes Notes
terms Terms and conditions
custom_fields Invoice custom fields
salesperson_id ID of the salesperson

Sample map:

{
	"total": "0.0",
	"payment_terms": "0",
	"terms": “Checking”,
	"price_precision": "2",
	"payment_expected_date": "2016-06-31”,
	"date": "2016-06-30",
	"shipping_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"balance": "0.0",
	"adjustment": "0.0",
	"currency_symbol": "Rs.",
	"salesperson_id": “7605000000336089”,
	"currency_code": "INR",
	"shipping_charge": "0.0",
	"custom_fields": [
		{
			"customfield_id": "7605000000336081",
			"is_active": true,
			"show_in_all_pdf": false,
			"value_formatted": "INV-8",
			"data_type": "autonumber",
			"index": 1,
			"label": "AutoNumber",
			"show_on_pdf": false,
			"value": "INV-8"
		},
		{
			"customfield_id": "7605000000351027",
			"is_active": true,
			"show_in_all_pdf": true,
			"value_formatted": "01 Aug 2016",
			"data_type": "date",
			"index": 2,
			"label": "Date",
			"show_on_pdf": true,
			"value": "2016-08-01"
		}
	],
	"currency_id": "7605000000000099",
	"exchange_rate": "1.0",
	"status": "draft",
	"sub_total": "12000.0",
	"customer_name": “Customer”,
	"invoice_number": "INV-000087",
	"discount_amount": "12000.0",
	"discount": "100.00%",
	"tax_total": "0.0",
	"reference_number": “checking”,
	"due_date": "2016-06-30",
	"invoice_id": "7605000000369043",
	"notes": "Thanks for your business.",
	"customer_id": "7605000000258011",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	}
}
sales order
Key Fields Description
date Sales Order date
tax_total Total tax amount in the sales order
zcrm_potential_id ID of the potential in Zoho CRM
discount_amount Discount amount involved in the sales order
salesorder_id Sales order ID
discount Discount
shipment_date Date on which shipment is made
billing_address Billing address of the customer
line_items Line items
currency_code Currency code
total Total amount
delivery_method_id Delivery method ID
terms Terms and conditions
delivery_method Method of delivery
shipping_address Shipping address of the customer
exchange_rate Exchange rate involved in the sales order
currency_symbol Currency symbol
custom_fields Sales order custom fields
estimate_id Estimate ID
reference_number Reference number of the sales order
salesperson_name Name of the salesperson involved
salesperson_id ID of the salesperson involved
shipping_charge Shipping charge entered in the sales order
salesorder_number Your sales order number
sub_total Sub total of the sales order
zcrm_potential_name Name of the potential in Zoho CRM
adjustment Adjustments made
customer_name Name of the customer who is assigned to the sales order
customer_id ID of the customer who is assigned to the sales order
currency_id Currency ID
status Status of your sales order

Sample map:

{
	"date": "2016-05-23",
	"tax_total": "0.0",
	"zcrm_potential_id": "",
	"discount_amount": "1200.0",
	"salesorder_id": "7605000000295003",
	"discount": "10.00%",
	"shipment_date": "2016-05-23",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"line_items": [
		{
			"bcy_rate": 12000,
			"line_item_id": "7605000000295011",
			"quantity": 1,
			"item_id": "7605000000259147",
			"tax_name": "",
			"description": "",
			"discount": 0,
			"item_total": 12000,
			"item_custom_fields": [
			],
			"tax_id": "",
			"is_invoiced": true,
			"item_order": 0,
			"tags": [
			],
			"stock_on_hand": "",
			"unit": "",
			"rate": 12000,
			"tax_type": "tax",
			"name": "Moto",
			"tax_percentage": 0
		}
	],
	"currency_code": "INR",
	"total": "10820.0",
	"delivery_method_id": "7605000000461053",
	"terms": "Terms & Conditions",
	"delivery_method": "Door Delivery",
	"shipping_address": {
		"zip": "",
		"country": "",
		"address": "",
		"city": "",
		"state": "",
		"fax": ""
	},
	"exchange_rate": "1.0",
	"currency_symbol": "Rs.",
	"custom_fields": [
		{
			"customfield_id": "7605000000321009",
			"is_active": true,
			"show_in_all_pdf": true,
			"value_formatted": "Text",
			"data_type": "string",
			"index": 1,
			"label": "Text",
			"show_on_pdf": true,
			"value": "Text"
		}
	],
	"estimate_id": "7605000000405047",
	"reference_number": "Reference",
	"salesperson_name": "Arun",
	"salesperson_id": "7605000000135003",
	"shipping_charge": "10.0",
	"salesorder_number": "SO-00002",
	"sub_total": "12000.0",
	"zcrm_potential_name": "",
	"adjustment": "10.0",
	"customer_name": "Arun",
	"customer_id": "7605000000101007",
	"currency_id": "7605000000000099",
	"status": "invoiced"
}
purchase order

The purchase order map supports the following fields:

Key Fields Description
date Date of the purchase order
delivery_address Delivery address
tax_total Total tax amount in the purchase order
delivery_org_address_id ID of delivery org address
purchaseorder_id Purchase order ID
expected_delivery_date Expected delivery date
billing_address Billing address of purchase order
line_items Line items in the purchase order
currency_code Currency code
total Total of the purchase order
delivery_customer_id Delivery customer ID
exchange_rate Exchange rate involved in the purchase order
currency_symbol Currency symbol
custom_fields Purchase order custom fields
ship_via_id ID of mode of shipping
vendor_name Name of the vendor
reference_number Reference number of your purchase order
purchaseorder_number Purchase order number
delivery_date Delivery date
vendor_id Vendor ID
sub_total Sub-total of the purchase order
ship_via Means of shipping
attention Attention
crm_owner_id ID of Zoho CRM owner
currency_id Currency ID
status Status

Sample map:

{
	"date": "2016-07-11",
	"delivery_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"tax_total": "0.0",
	"delivery_org_address_id": "7605000000054013",
	"purchaseorder_id": "7605000000378500",
	"expected_delivery_date": "",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"line_items": [
		{
			"bcy_rate": 1000,
			"line_item_id": "7605000000378504",
			"quantity": 1,
			"item_id": "7605000000298021",
			"tax_name": "",
			"description": "",
			"item_total": 1000,
			"tax_id": "",
			"item_order": 0,
			"tags": [

			],
			"unit": "No",
			"account_id": "7605000000000403",
			"rate": 1000,
			"tax_type": "tax",
			"account_name": "Advertising And Marketing",
			"name": "Moto G Turbo Edition",
			"tax_percentage": 0
		}
	],
	"currency_code": "INR",
	"total": "1000.0",
	"delivery_customer_id": "",
	"exchange_rate": "1.0",
	"currency_symbol": "Rs.",
	"custom_fields": "[]",
	"ship_via_id": "7605000000461053",
	"vendor_name": "Mr. Vendor",
	"reference_number": "Reference",
	"purchaseorder_number": "PO-00006",
	"delivery_date": "2016-07-11",
	"vendor_id": "7605000000112009",
	"sub_total": "1000.0",
	"ship_via": "Door Delivery",
	"attention": "Arun",
	"crm_owner_id": "",
	"currency_id": "7605000000000099",
	"status": "billed"
}
customer

The customer map supports the following fields:

Key Fields Description
owner_id ID of associated owner
billing_address Billing address associated to customer
source Source of the customer
contact_id Contact ID
payment_terms Payments terms associated to customer
currency_code Currency code
language_code Language code
contact_type Type of the contact
twitter Twitter info
zcrm_contact_id ID of the contact in Zoho CRM
shipping_address Shipping address associated to customer
pricebook_id ID of pricebook associated
contact_name Name of contact
website Website of contact
owner_name Name of contact owner
currency_symbol Currency symbol
zcrm_account_id ID of Zoho CRM account
custom_fields Custom fields associated with customer
facebook Facebook info
pricebook_name Name of pricebook associated
primary_contact_id ID of primary contact
company_name Name of the company
contact_salutation Contact salutation
crm_owner_id ID of CRM owner
currency_id Currency ID
payment_terms_label Payment terms label
status Status

Sample map:

{
	"owner_id": "",
	"shipping_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"source": "user",
	"contact_id": "7605000000197147",
	"payment_terms": "0",
	"currency_code": "INR",
	"language_code": "en",
	"contact_type": "customer",
	"twitter": "",
	"zcrm_contact_id": "",
	"billing_address": {
		"zip": "94588",
		"country": "USA",
		"address": "4910 Hopyard Rd",
		"city": "Pleasanton",
		"state": "CA",
		"fax": "Fax Number"
	},
	"pricebook_id": "",
	"contact_name": "Arun",
	"website": "www.zoho.com",
	"owner_name": "",
	"currency_symbol": "Rs.",
	"zcrm_account_id": "418070000000135001",
	"custom_fields": [
		{
			"customfield_id": "7605000000063049",
			"is_active": true,
			"show_in_all_pdf": false,
			"value_formatted": "1234",
			"data_type": "number",
			"index": 1,
			"label": "Unpaid Invoices",
			"show_on_pdf": false,
			"value": "1234"
		}
	],
	"facebook": "",
	"pricebook_name": "",
	"primary_contact_id": "7605000000197149",
	"company_name": "Zoho",
	"contact_salutation": "",
	"crm_owner_id": "",
	"currency_id": "7605000000000099",
	"payment_terms_label": "Due on Receipt",
	"status": "active"
}

recurring invoice

The recurring invoice map supports the following fields:

Key Fields Description
end_date End date of the recurring invoice profile
tax_total Total tax amount in the recurring invoice
discount_amount Discount amount involved in the recurring invoice
repeat_every Repetition period of recurring invoice profile
discount Discount involved in the recurring invoice
taxes Taxes associated with the recurring invoice
billing_address Billing address of the customer
line_items Line items in the recurring invoice
payment_terms Payments terms associated to customer
currency_code Currency code
last_sent_date Date of the last sent invoice
total Total amount
recurrence_name Name of the recurring invoice profile
shipping_address Shipping address of the customer
next_invoice_date Date of the next invoice to be sent
recurrence_frequency Frequency of the recurring invoice profile
recurring_invoice_id ID of the recurring invoice profile
contact_persons Contact persons involved in recurring invoice
start_date Starting date of the recurring invoice profile
exchange_rate Exchange rate involved in the recurring invoice
currency_symbol Currency symbol
custom_fields Recurring invoice custom fields
salesperson_name Name of the sales person involved
salesperson_id ID of the sales person involved
shipping_charge Shipping charge entered in the recurring invoice
sub_total Sub-total of the recurring invoice
adjustment Adjustments made
customer_name Name of the customer involved
customer_id ID of the customer involved
status Status of the recurring invoice profile

Sample map:


{
	"end_date": "2016-10-15",
	"tax_total": "0.0",
	"discount_amount": "1.0",
	"repeat_every": "2",
	"discount": "1.00%",
	"taxes": "[]",
	"billing_address": {"zip":"","fax":"","address":"","state":"","country":"","city":""},
	"line_items": [{"tags":[],"tax_name":"","tax_type":"tax","item_custom_fields":[],"product_type":"service","line_item_id":"348960000000103013","discount":0,"unit":"","item_order":0,"rate":100,"item_id":"","description":"%(d)%-%(m-2)%-%(y)%","name":"","quantity":1,"tax_id":"","tax_percentage":0,"item_total":100}],
	"payment_terms": "0",
	"currency_code": "GBP",
	"last_sent_date": "",
	"total": "200.0",
	"recurrence_name": "1",
	"shipping_address": {"zip":"","fax":"","address":"","state":"","country":"","city":""},
	"next_invoice_date": "",
	"recurrence_frequency": "months",
	"recurring_invoice_id": "348960000000103005",
	"contact_persons": "[]",
	"start_date": "2016-01-07",
	"exchange_rate": "1.0",
	"currency_symbol": "£",
	"custom_fields": [{"value_formatted":"EST-001","index":1,"is_active":true,"data_type":"string","show_on_pdf":false,"value":"EST-001","show_in_all_pdf":false,"label":"Estimate Number","customfield_id":"348960000000056001"},{"value_formatted":"15 Oct 2016","index":2,"is_active":true,"data_type":"date","show_on_pdf":false,"value":"2016-10-15","show_in_all_pdf":false,"label":"Date","customfield_id":"348960000000056003"},{"value_formatted":"true","index":3,"is_active":true,"data_type":"check_box","show_on_pdf":false,"value":true,"show_in_all_pdf":false,"label":"Invoice Factoring","customfield_id":"348960000000056079"},{"value_formatted":"£100.00","index":4,"is_active":true,"data_type":"amount","show_on_pdf":true,"value":100,"show_in_all_pdf":true,"label":"Amount","customfield_id":"348960000000060003"},{"value_formatted":"10%","index":5,"is_active":true,"data_type":"percent","show_on_pdf":true,"value":10,"show_in_all_pdf":true,"label":"Percentage","customfield_id":"348960000000060005"}],
	"salesperson_name": "Arun N",
	"salesperson_id": "348960000000111001",
	"shipping_charge": "100.0",
	"sub_total": "100.0",
	"adjustment": "1.0",
	"customer_name": "iArun",
	"customer_id": "348960000000051041",
	"status": "expired"
}

expense

The expense map supports the following fields:

Key Fields Description
date Date
payment_mode Mode of payment
custom_fields Expense custom fields
vendor_name Name of the vendor involved
is_billable Billability of the expense
line_items Line items in the expense
project_name Name of the project involved
reference_number Reference number of the expense
currency_code Currency code
total Total
project_id ID of the project involved
vendor_id ID of the vendor involved
sub_total Sub-total on the expense
customer_name Name if the customer involved
customer_id ID of the customer involved
expense_id Expense ID
currency_id Currency ID

Sample map:

{
	"date": "2016-10-08",
	"payment_mode": "Cash",
	"custom_fields": "[]",
	"vendor_name": "Vendor",
	"is_billable": "true",
	"line_items": [{"tags":[],"tax_name":"Standard Rate","item_order":1,"tax_type":"tax","account_id":"348960000000000400","description":"Notes","tax_amount":16.67,"product_type":"goods","tax_id":"348960000000044037","line_item_id":"348960000000184015","tax_percentage":20,"item_total":83.33,"account_name":"Office Supplies"}],
	"project_name": "",
	"reference_number": "12345",
	"currency_code": "GBP",
	"total": "100.0",
	"project_id": "",
	"vendor_id": "348960000000051033",
	"sub_total": "83.33",
	"customer_name": "Accounts",
	"customer_id": "348960000000111017",
	"expense_id": "348960000000184003",
	"currency_id": "348960000000000103"
}

bill

The bill map supports the following fields:

Key Fields Description
date Date on the bill
bill_id ID of the bill
purchaseorder_ids ID of the purchase order involved
tax_total Total tax amount in the bill
exchange_rate Exchange rate involved in the bill
currency_symbol Currency symbol
custom_fields Bill custom fields
due_date Due date of the bill
vendor_name Name of the vendor involved
billing_address Billing address
line_items Line items in the bill
payment_terms Payments terms associated to vendor
payment_expected_date Expected payment date
reference_number Reference number of the bill
currency_code Currency code
total Total on the bill
bill_number Bill number
payment_made Payment made for the bill
balance Balance amount
recurring_bill_id ID of the recurring bill profile
vendor_id ID of the vendor involved
sub_total Sub-total on the bill
status Bill status

Sample map:

{
	"date": "2016-10-12",
	"bill_id": "348960000000193039",
	"purchaseorder_ids": "[]",
	"tax_total": "0.0",
	"exchange_rate": "1.0",
	"currency_symbol": "£",
	"custom_fields": "[]",
	"due_date": "2016-10-15",
	"vendor_name": "Vendor",
	"billing_address": {"zip":"","fax":"","address":"","state":"","country":"","city":""},
	"line_items": [{"tags":[],"tax_name":"","project_name":"","tax_type":"tax","account_id":"348960000000000412","customer_name":"","is_billable":false,"product_type":"goods","line_item_id":"348960000000193047","invoice_number":"","sku":"","purchaseorder_item_id":"","account_name":"Credit Card Charges","unit":"1","item_order":0,"rate":33000,"bcy_rate":33000,"item_id":"348960000000087031","description":"","project_id":"","name":"refrigerator","tax_id":"","quantity":1,"invoice_id":"","tax_percentage":0,"customer_id":"","item_total":33000}],
	"payment_terms": "3",
	"payment_expected_date": "",
	"reference_number": "1",
	"currency_code": "GBP",
	"total": "33000.0",
	"bill_number": "Bill-001",
	"payment_made": "0.0",
	"balance": "33000.0",
	"recurring_bill_id": "",
	"vendor_id": "348960000000051033",
	"sub_total": "33000.0",
	"status": "open"
}

recurring bill

The recurring bill map supports the following fields:

Key Fields Description
end_date End date of the recurring bill profile
tax_total Total tax amount in the recurring bill
exchange_rate Exchange rate involved in the recurring bill
custom_fields Recurring bill custom fields
repeat_every Repetition period of recurring bill profile
taxes Taxes involved in the recurring bill
vendor_name Name of the vendor involved
line_items Line items in the recurring bill
payment_terms Payments terms associated to vendor
currency_code Currency code
last_sent_date Date of the last sent bill
total Recurring bill total
next_bill_date Date of the next bill
recurring_bill_id ID of the recurring bill
recurrence_name Name of the recurring bill profile
vendor_id ID of the vendor involved
sub_total Sub-total on the recurring bill
recurrence_frequency Frequency of the recurring invoice profile
payment_terms_label Payment terms label
status Status of the recurring bill profile
start_date Starting date of the recurring bill profile

Sample map:

{
	"end_date": "2016-10-15",
	"tax_total": "0.0",
	"exchange_rate": "1.0",
	"custom_fields": "[]",
	"repeat_every": "1",
	"taxes": "[]",
	"vendor_name": "Vendor",
	"line_items": [{"tags":[],"tax_name":"","account_id":"348960000000000403","tax_type":"tax","product_type":"goods","line_item_id":"348960000000193067","account_name":"Advertising And Marketing","unit":"","item_order":0,"rate":900,"bcy_rate":900,"item_id":"348960000000051011","description":"","name":"Item","quantity":1,"tax_id":"","tax_percentage":0,"item_total":900}],
	"payment_terms": "0",
	"currency_code": "GBP",
	"last_sent_date": "2016-10-12",
	"total": "900.0",
	"next_bill_date": "",
	"recurring_bill_id": "348960000000193061",
	"recurrence_name": "RB-001",
	"vendor_id": "348960000000051033",
	"sub_total": "900.0",
	"recurrence_frequency": "weeks",
	"payment_terms_label": "Due on Receipt",
	"status": "expired",
	"start_date": "2016-10-12"
}

item

The item map supports the following fields:

Key Fields Description
item_id Item ID
custom_fields Item custom fields
item_type Type of the item
tax_name Name of the tax involved
purchase_rate Purchase rate of the item
zcrm_product_id ID of the product in Zoho CRM
tax_id ID of the tax involved
unit Unit of the item
account_id Sales account ID
purchase_account_name Name of the purchase account
purchase_account_id Purchase account ID
tax_type Type of the tax involved
rate Sales rate of the item
account_name Name of the sales account involved
name Name of the item
tax_percentage Percentage of tax involved
pricebook_rate Pricebook rate
sku SKU of the item
status Status of the item

Sample map:

{
	"item_id": "348960000000051011",
	"custom_fields": [{"value_formatted":"100","index":1,"is_active":true,"data_type":"decimal","show_on_pdf":true,"value":100,"show_in_all_pdf":true,"label":"Profit","customfield_id":"348960000000134003"}],
	"item_type": "sales_and_purchases",
	"tax_name": "",
	"purchase_rate": "900.0",
	"zcrm_product_id": "1665395000000205001",
	"tax_id": "",
	"unit": "1",
	"account_id": "348960000000000388",
	"purchase_account_name": "Advertising And Marketing",
	"purchase_account_id": "348960000000000403",
	"tax_type": "",
	"rate": "1000.0",
	"account_name": "Sales",
	"name": "Item",
	"tax_percentage": "0",
	"pricebook_rate": "1000.0",
	"sku": "SKU",
	"status": "active"
}

A few example explaining how these fields would help in fetching the necessary paramters:

Example 1:

To fetch estimate id, use:

estimateid = estimate.get("estimate_id");

Example 2:

To fetch your organization name, use:

orgid = organization.get("name");

Example 3:

To fetch a user’s name and ZUID, use:

username = user.get("name");
zuid = user.get("zuid");

To know more about how to use Deluge scripts for writing custom functions, refer the Deluge Reference Guide.

To know more about different scenarios where custom functions could be useful, refer our Custom Function Scenarios page.


Was this document helpful?
Thank you for your feedback!
TOP
