Geo Map Chart

Geo Data Visualization (Map Charts) for Zoho Analytics

A map chart is a map of a world, continent, or country, with the data values assigned to specific regions through chart visualizations. These map charts are also called as Geovisualization. It refers to the analysis of geospatial data through the use of interactive visualization.

  1. Who can create a map chart and what do you need?
  2. What kind of data can be visualized in map charts?
  3. Will Zoho Analytics automatically identify the Geodata?
  4. How do I set the data type of a column as Geo?
  5. I have Latitude and Longitude specific information in my dataset, can I create a map chart using that?
  6. I have postal zipcode in my dataset, can I create a map chart using that?
  7. I have IATA airport code in my dataset, can I create a map chart using that?
  8. What are the supported Map chart types?
  9. How do I create a map chart?
  10. Can I create a map chart for specific countries alone and hide the rest of the map?
  11. How do I create a map chart using the latitude and longitude columns?
  12. How do I create a map chart using the IATA airport code columns?
  13. I have a column whose data-type I do not want to change to "Geo". Can I still create a map chart using it?
  14. What are the interaction options available on map charts?
  15. What are unresolved locations and from where do I access the list?
  16. I have created a map chart but there are some unresolved locations, how do I resolve them?
  17. Can I use a continuous color range legend for map chart?
  18. Can I customize the default home screen of the map chart?
  19. How can I customize the map chart settings?
  20. How do I customize the map chart Theme?
  21. Can I create the map chart over the satellite map?
  22. How do I customize the marker used in a map-scatter chart?
  23. How do I customize the color of the charts plotted in the map?
  24. How do I customize the legend settings in a map chart?

1. Who can create a map chart and what do you need?

Any Zoho Analytics user who wishes to visualize geographical data can create this chart. You will need a location-specific data column to create this chart.

2. What kind of data can be visualized in map charts?

If your dataset contains location information (say, country, county, city etc) then you can use map charts to visualize your data. Zoho Analytics will auto-identify the columns types while importing and set the corresponding Geo data type. Currently, Zoho Analytics can auto-identify 5 types of Geodata.

  • Continent - If your column contains the names of the continents
  • Country - If your column contains the names of countries
  • County - If your column contains the names of counties
  • State/Province - If your column contains the names of states/provinces
  • City - If your column contains the names of cities
  • Zip Code - If your column contains postal code of locations
  • Latitude and Longitude - If your column contains latitude and longitude of locations
  • Airport - If your column contains airport IATA code

3. Will Zoho Analytics automatically identify the Geodata?

Yes. When you import the data into Zoho Analytics if your dataset contains a geographical column (continent, country, county, state or city ) it will be automatically set to the corresponding Geo data type.

In case your dataset contains a latitude, longitude or zip code data, you will have to manually change the data type to a Geo-location either at the time of import or later using the Change Data Type option. Refer to this question to learn how.

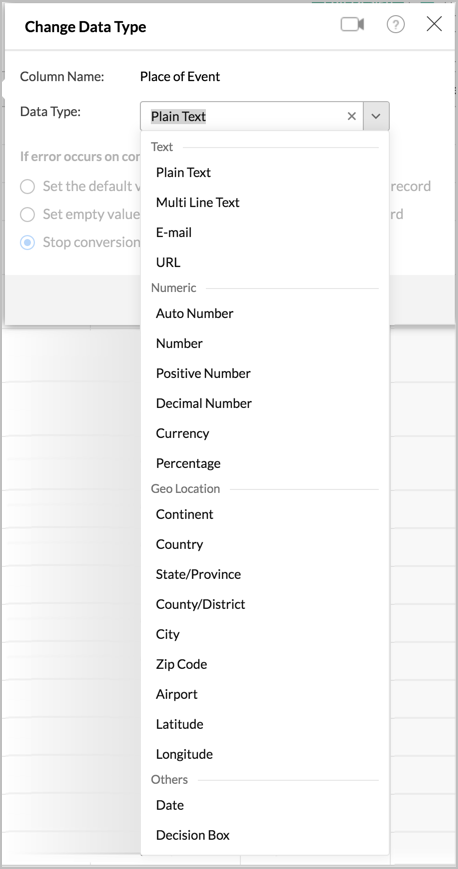

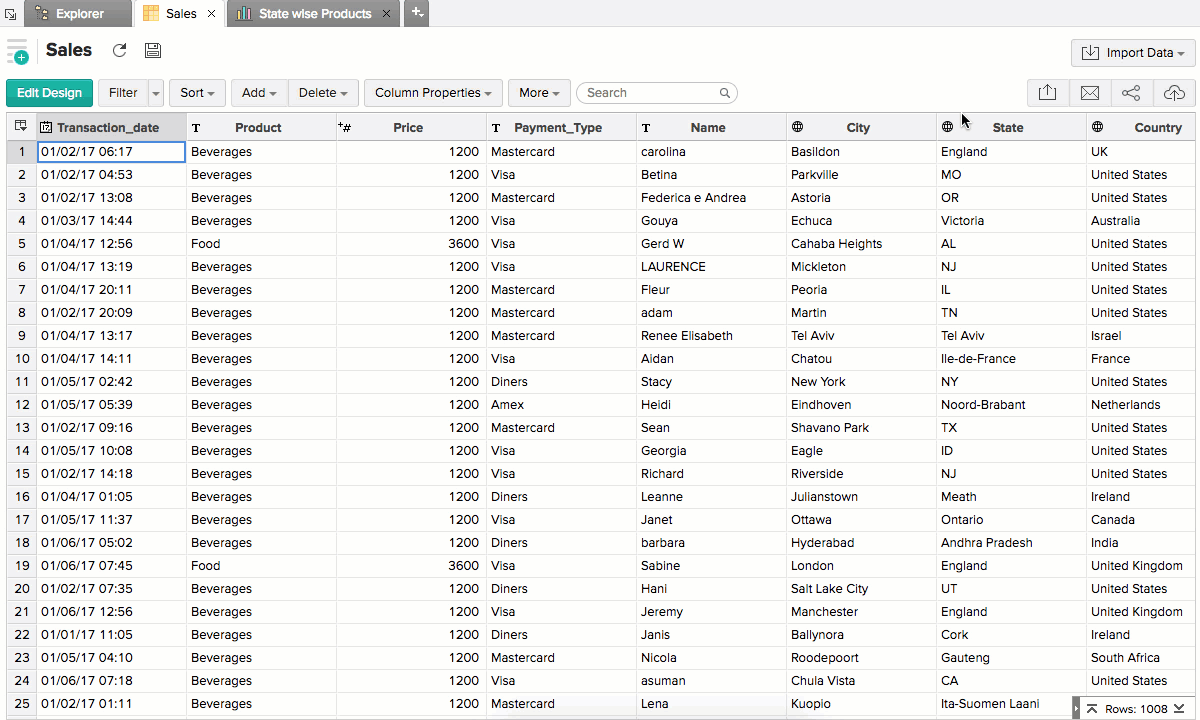

4. How do I set the data type of a column as Geo?

When you import the data into Zoho Analytics if your dataset contains a geographical column (continent, country, state, city or district) it will be automatically set to the corresponding Geo data type. If your existing table contains a geographical column and you wish to change the data type,

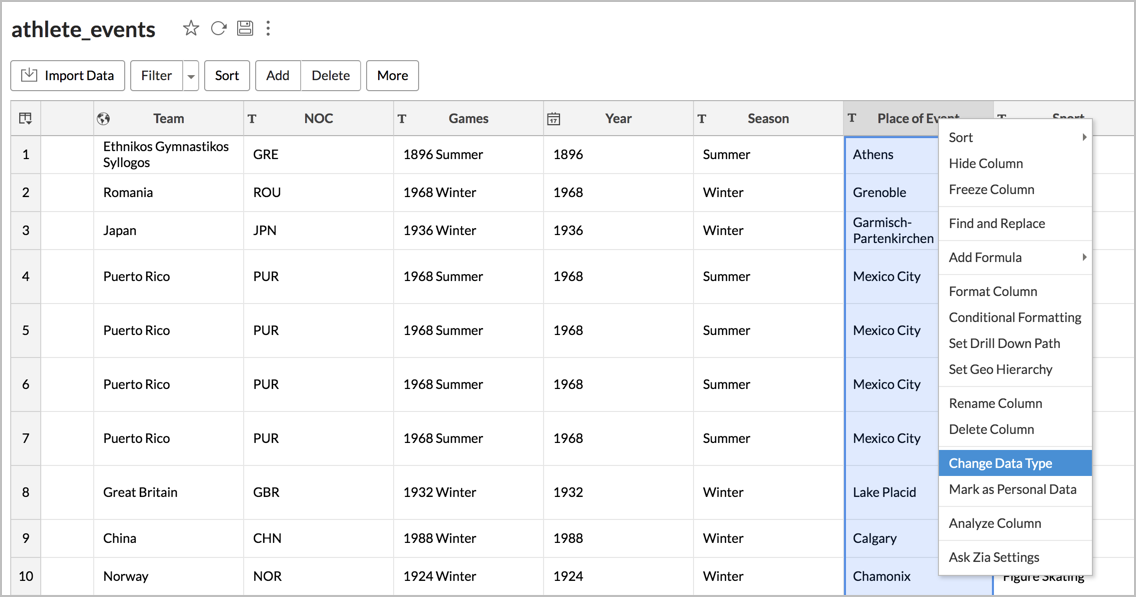

  • Right-click the column header and select Change Data Type
  • Select the correct Geo data type from the Data Type drop-down
  • Click OK

5. I have Latitude and Longitude specific information in my dataset, can I create a map chart using that?

Yes, you can. To create map chart using latitude and longitudes, you need both latitude and longitude data as different columns in your dataset and set the data type of the columns to Latitude/Longitude.

Follow the below steps to change the data type of your column.

  1. Right-click the column name and select Change Data Type
  2. Select the Latitude/Longitude from the drop-down.
  3. Click OK.

Once you have set the data type as latitude and longitude. You can create reports using this.

6. I have postal zip code in my dataset, can I create a map chart using that?

Yes, you can.  To create a chart using this you need to change the data type of the column to Zip code.

Follow the below steps to change the data type of your column to Zip Code.

  1. Right-click the column name and select Change Data Type
  2. Select the Zip Cope from the drop-down.
  3. Click OK.

Once you have set the data type as Zip Code. You can create reports using this.

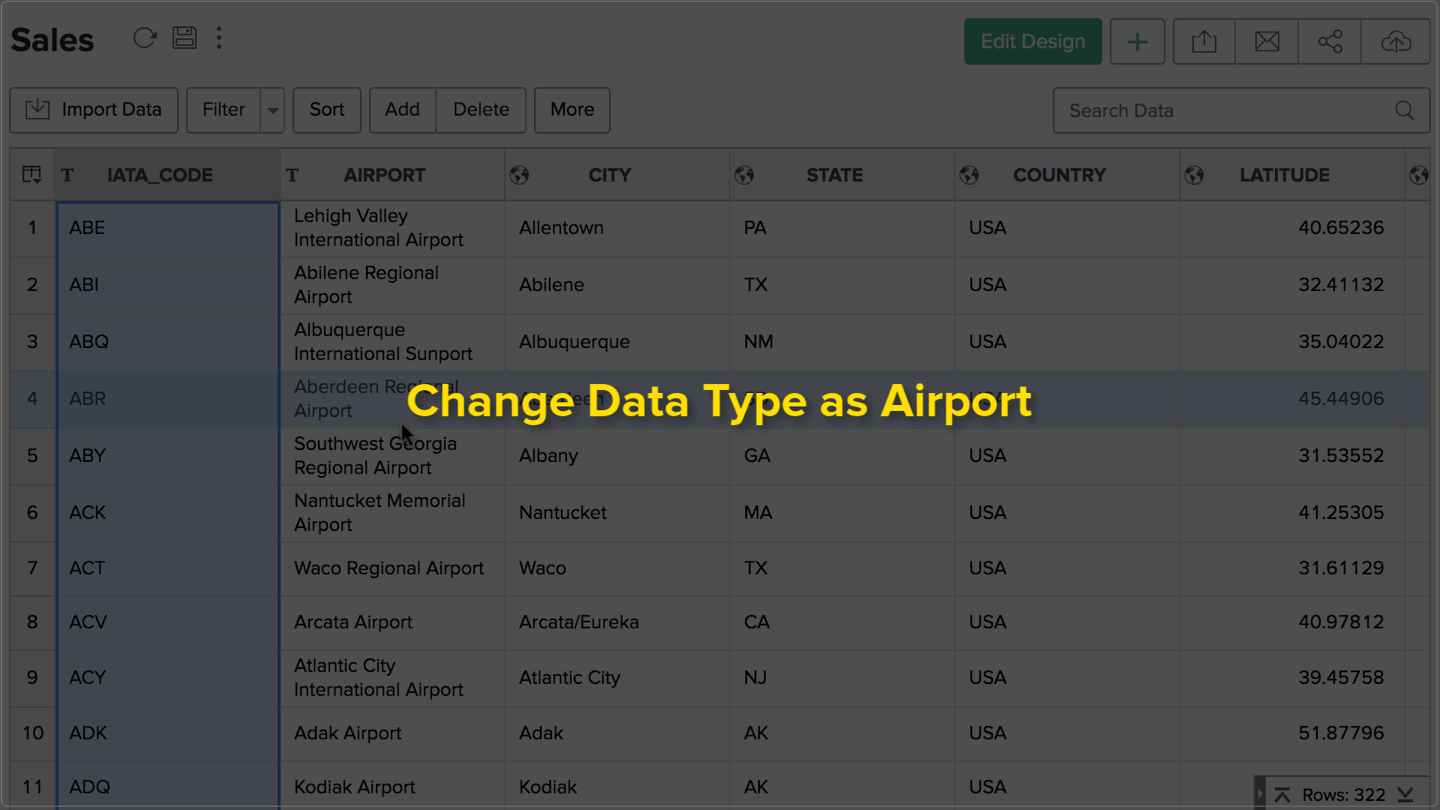

7. I have airport IATA code in my dataset, can I create a map chart using that?

Yes, you can.  Zoho Analytics will automatically identify your data as IATA code. In case it is not identified, then you need to change the data type of the column to Airport.

Follow the below steps to change the data type of your column to Airport.

  1. Right-click the column name and select Change Data Type
  2. Select the Airport from the drop-down.
  3. Click OK.​

Once you have set the data type as Airport. You can create reports using this.

8. What are the supported map chart types?

Currently, Zoho Analytics supports 5 types of map charts,

  • Map Scatter
  • Map Bubble
  • Map Pie
  • Map Bubble Pie
  • Map Filled

You can change the chart type using the Other Charts option.

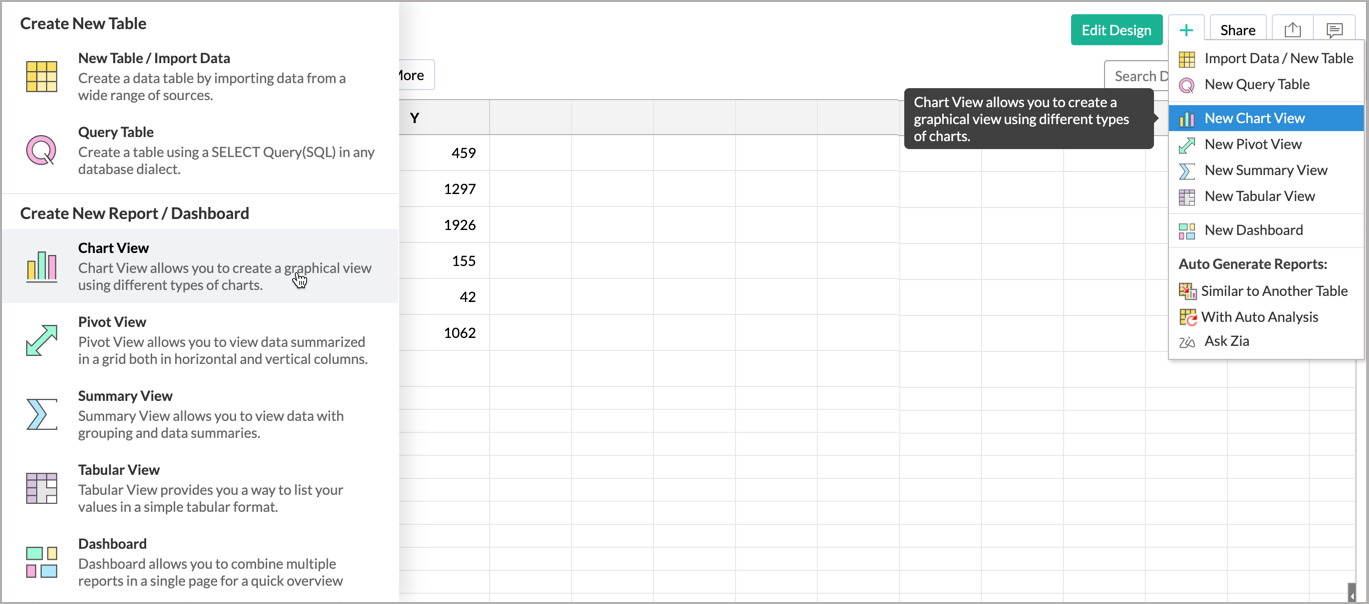

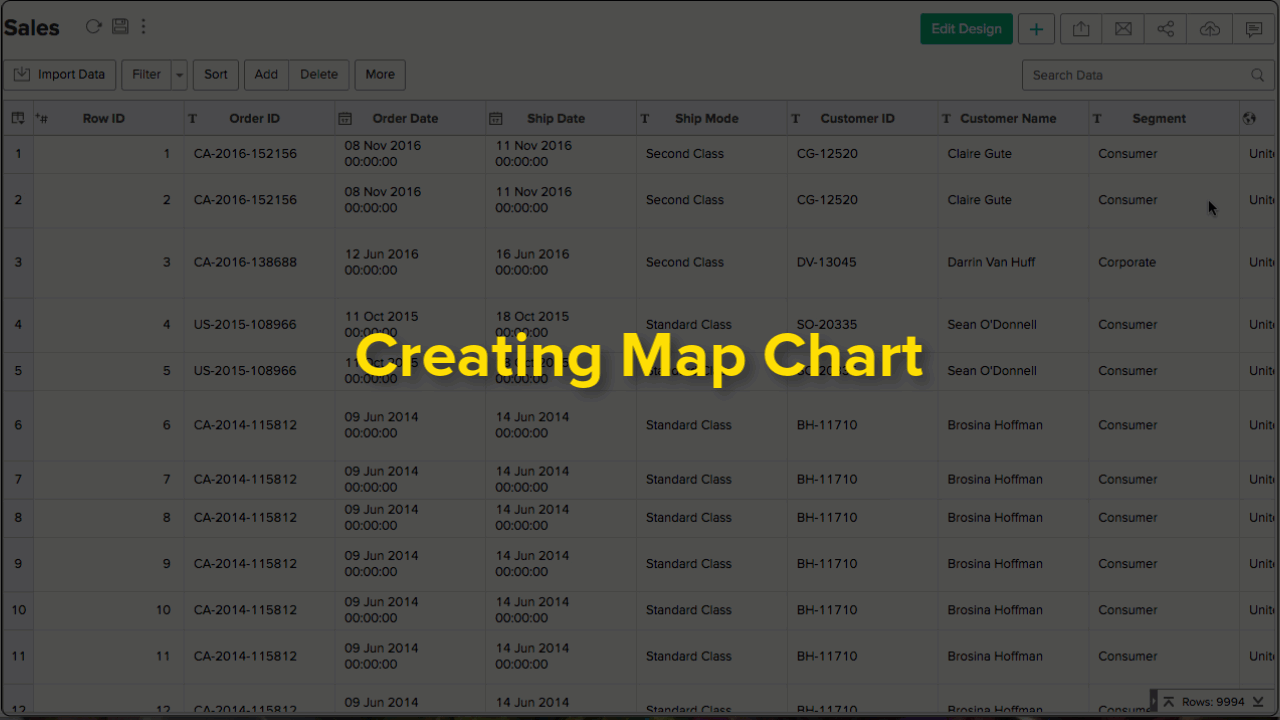

9. How do I create a map chart?

You can create a map chart by dragging and dropping a geographical column either in the X or Y axis shelf. In the below animation we have created a map chart to plot the total sales done in each country grouped by the product category.

Note:
  • Supports upto 300 data series in all map charts and 50 data series in map pie chart.
  • Supports upto 200K data points in all map charts.
  • Customized marker type supports 2K data points. In case it exceeds, it will switch to the default scatter chart.
  • In case you are using IE 11 or below, then you can plot only 2K data points in map charts.

10. Can I create a map chart for specific countries alone and hide the rest of the map?

Yes, you can create a map chart for specific countries alone by selecting the country-specific map. You can change the map type from the Maps tab of the Settings page.

The below animation shows you how to create a chart over specific countries.

Note:
  • This is a fixed map and only the countries and their respective state information will be visible. In case of the live map, you can zoom in till the street level.
  • In this mode, you can plot the chart for both across the world or on specific countries.

11. How do I create a map chart using the latitude and longitude columns?

To create a map chart using the latitude and longitude information, you need to ensure that the data type of the column is set to Latitude and Longitude. Refer to this section to learn how.

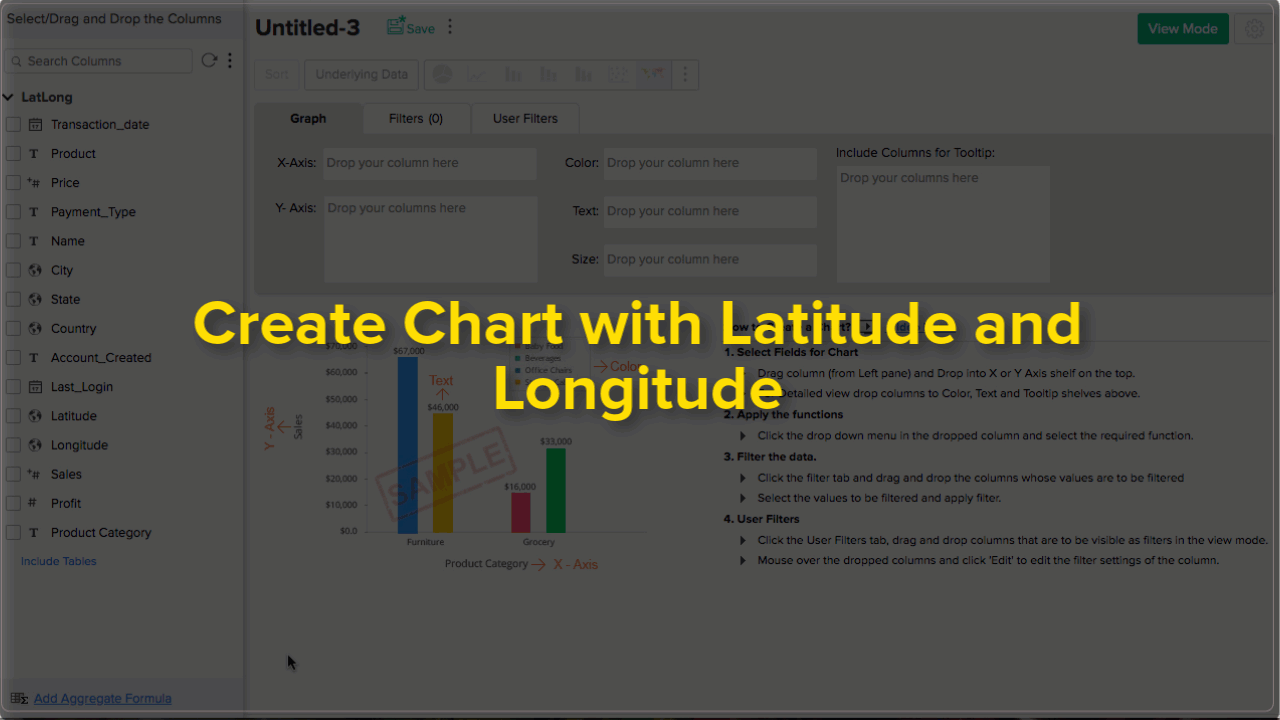

The below animation shows you how to create a chart using Latitude and Longitude data. In this chart, we have plotted the total profit gained in a location grouped by product category.

12. How do I create a map chart using the Airport information (IATA Code)?

To create a map chart using the airport information (IATA code), you need to ensure that the data type of the column is set Airport. Refer to this section to learn how.

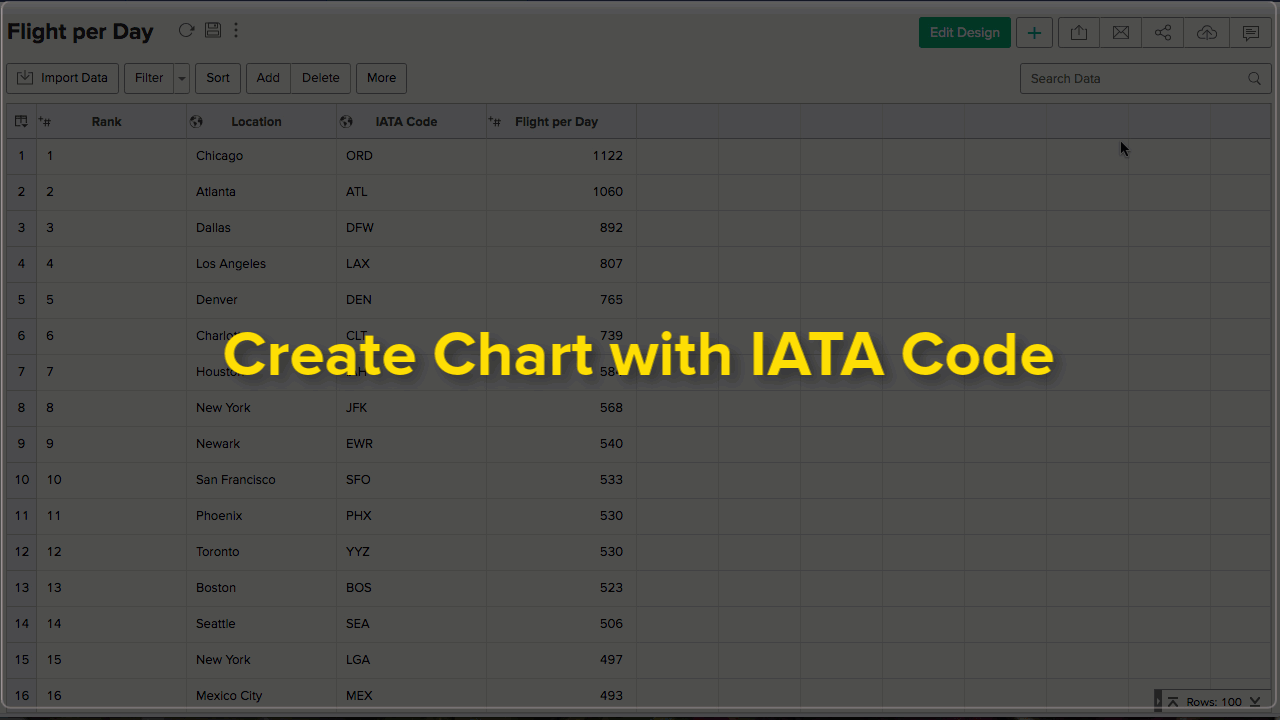

The below animation shows how to create a chart using Airport data. This chart plots the busiest airports in the US, based on the number of flights per day.

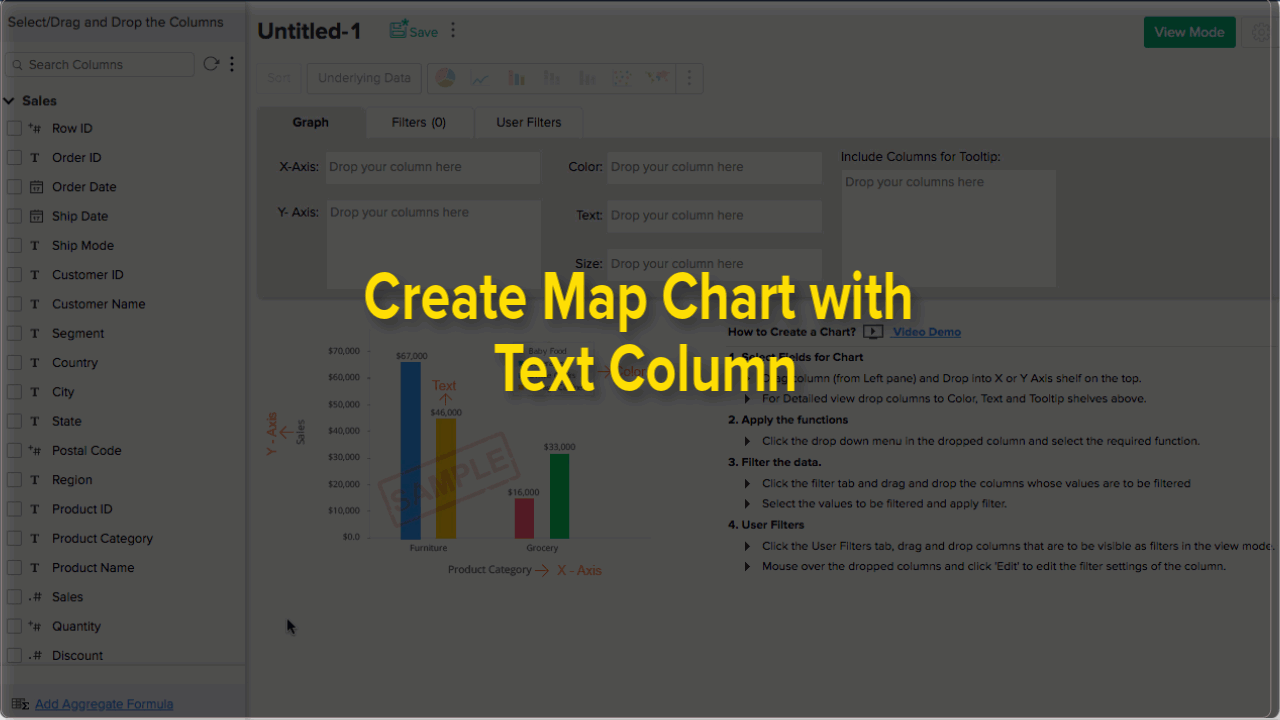

13. I have a column whose data-type I do not want to change to "Geo". Can I still create a map chart using it?

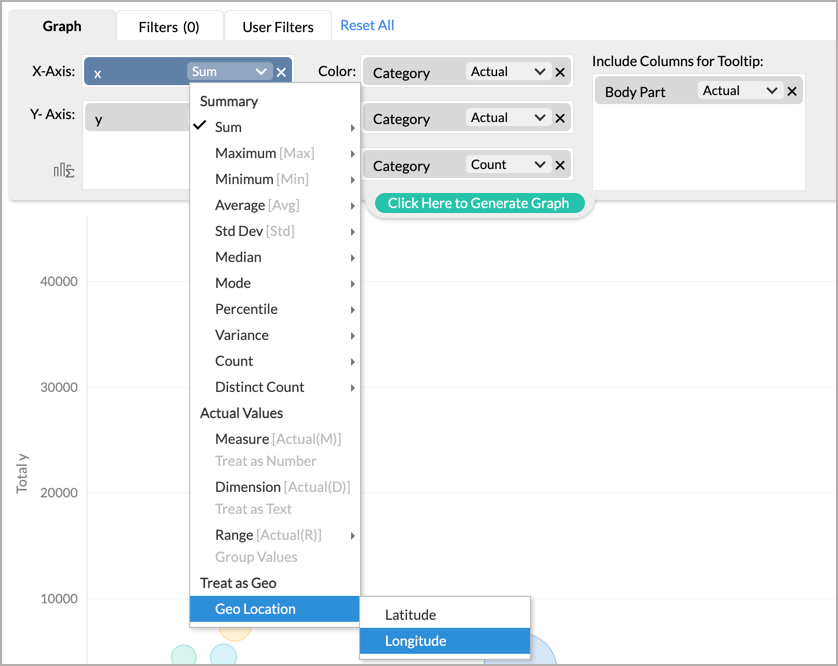

Yes, you can do it using the Treat as Geo option in the chart designer. When you use this option data type of the column used in creating the report will be considered as a Geo Data Type only for that particular report.

In the below animation, the column 'State' is of string data type. We have created a map chart using this column by using the option 'Treat as Geo'.

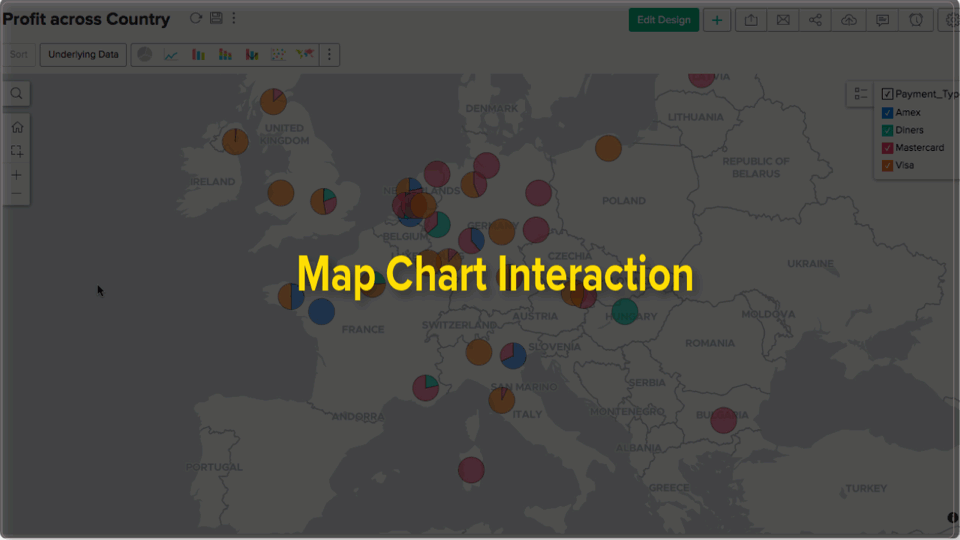

14. What are the interaction options available on map charts?

Zoho Analytics provides an immersive geo map visualization with its wide range of interaction options. You can interact with the overall map chart using the map toolbar options that appear on the left corner of the map. Regular chart marker and legend specific interactions are also available, providing an immersive geo map visualization experience.

Interactions using the Map Toolbar

  • Search - Allows you to search the location
  • Home - Fits the map to screen
  • Grab Area - Zooms the selected area
  • Zoom in - Zoom to view till the street
  • Zoom out

Chart Interactions

You can use all the regular interaction options over the chart marker & legend that are listed below:

15. What are unresolved locations and from where do I access the list?

When you plot a map chart, sometimes Zoho Analytics might not plot all the data points in the map. This could be due to issues in resolving the geolocation such as duplicated/ambiguous location names, misspelled locations, the colloquial name for places etc.

When Zoho Analytics is not able to identify a location, it lists it as an Unresolved Location(s) for the user to rectify the issue. You can find the list of unresolved locations by clicking the Unresolved Location(s) icon that appears in the Map toolbar when you mouse over the chart in the Edit Mode. Refer to the next question to learn about resolving them.

16. I have created a map chart but there are some unresolved locations, how do I resolve them?

Unresolved locations as mentioned in the previous question are geo locations (places) that Zoho Analytics is not able to identify. You can help Zoho Analytics to resolve them, by providing the required/missing information, as described in the below steps.

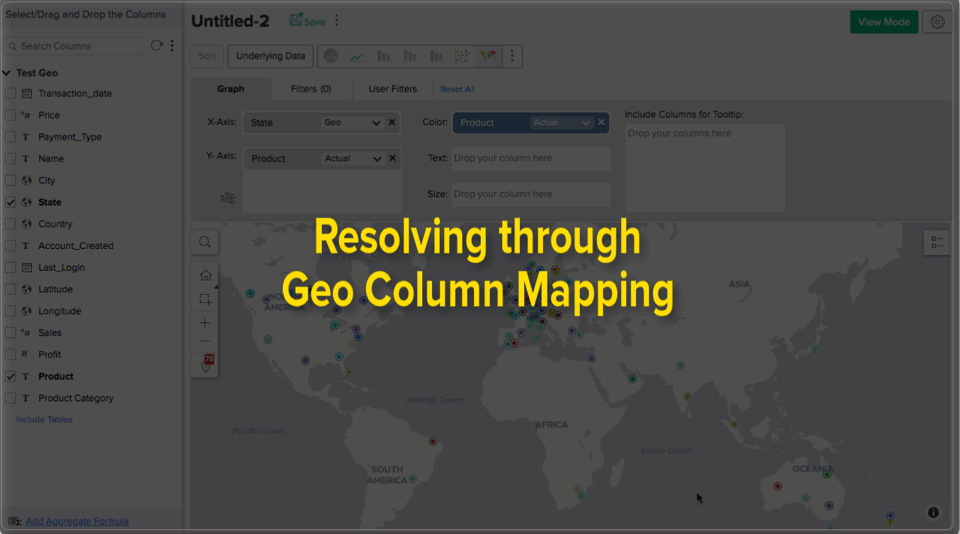

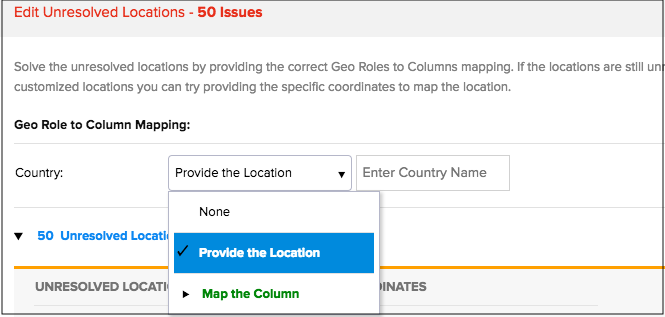

Resolving through Geo Column Mapping

Mapping it to a country column: This will allow Zoho Analytics to identify the country in which the unresolved place is located and plot it appropriately. If you have a country column in your data-set, you can map it to resolve the unresolved locations.

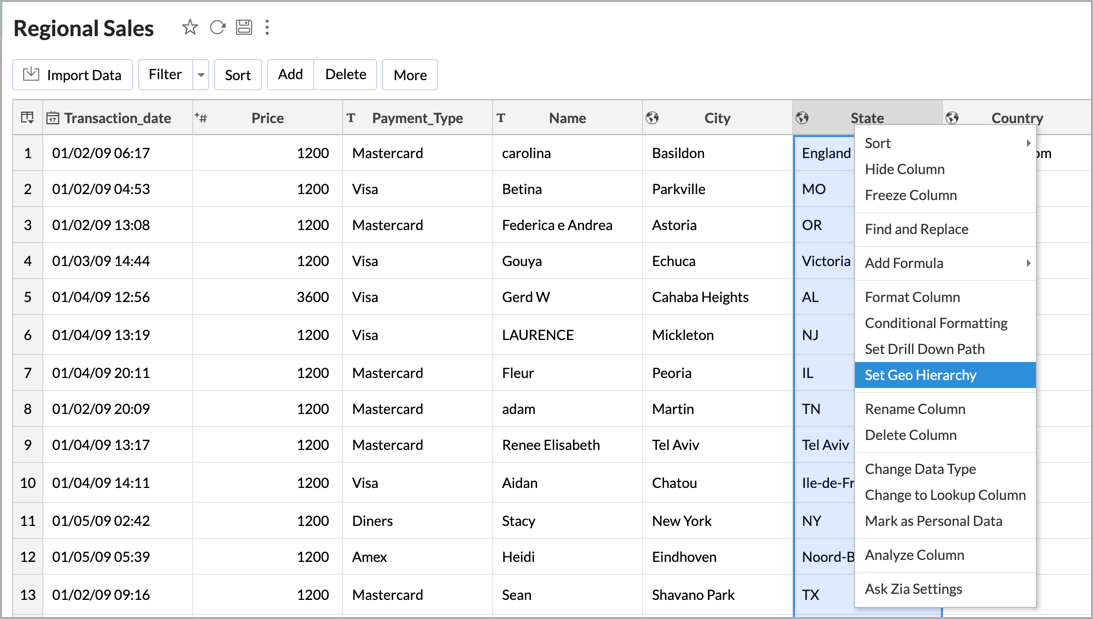

In case you do not have a country column, but all the state/cities belong to a single country, you can use Provide the Location option and enter the name of the country.

Mapping it to a state column: This is in addition to mapping the location to a country column. If your dataset contains a state column further mapping it to a state column will help Zoho Analytics identify the state in which the unresolved location is located.

In case you do not have a state column, but all the cities belong to a single state, you can enter the name of the state by selecting Provide the Location option as described above in the case of a country.

Note

Alternatively, you can resolve these issues from the parent table as well. Refer to the below image to know how.

Correcting Misspelt Locations

Zoho Analytics will not be able to identify the location if the spelling of the location is not correct. For example., Hong Kong spelled as Hongkong or Brooklyn being spelled as  Broklyn.

In this case, we recommend you to correct the spelling either in the original data and then import it into Zoho Analytics or make the necessary corrections in the Zoho Analytics table.

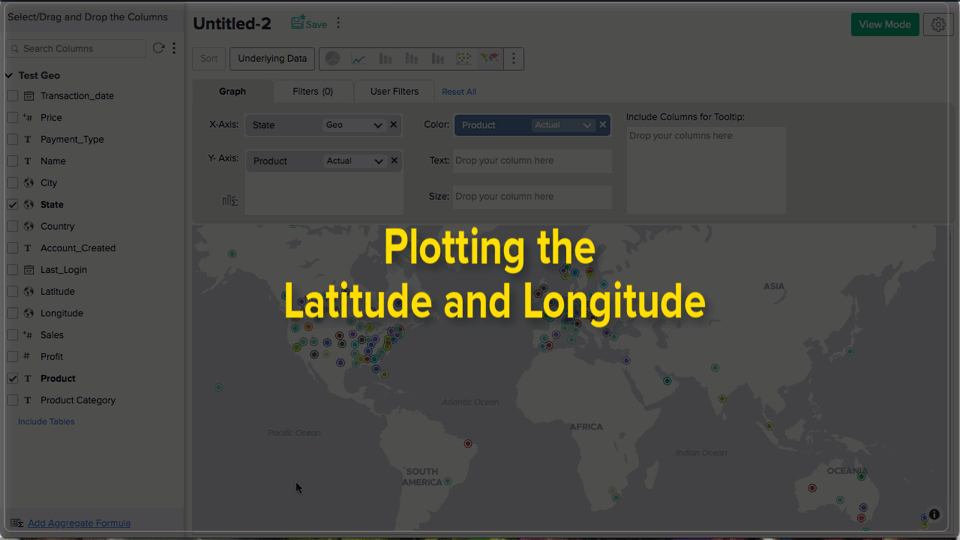

Plotting the Latitude and Longitude

You can also resolve the issues by specifying the latitude and the longitude values of the corresponding location in the unresolved locations page.

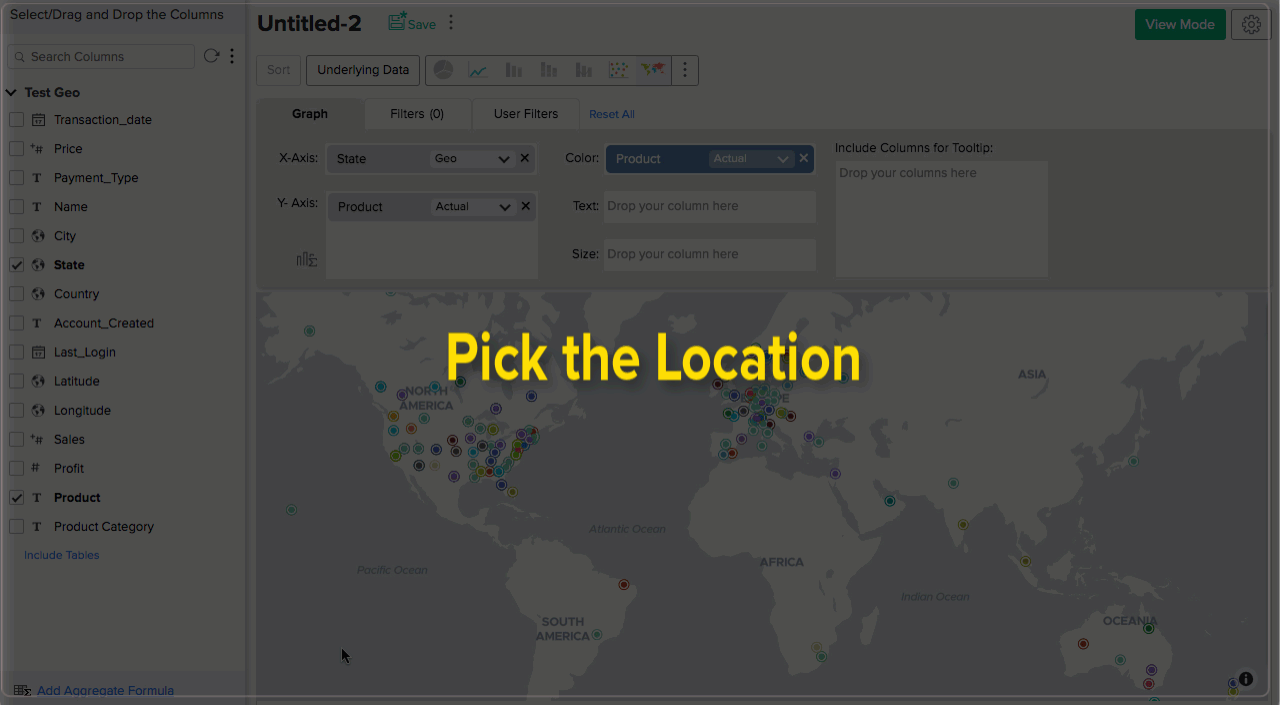

Pick the Location

You can also pick the location by clicking the Pick Location link. Search the location in the map using the given search field. Place the picker in the correct geolocation in the map and click Apply. The latitude and the longitude values for the selected location will be auto-filled in the respective fields.

17. Can I use a continuous color range legend for map chart?

Yes, you use a continuous color range legend for map chart and categorize the data values using color range. This will be pretty useful for visualizing data based on the volume of occurrence.

The below animation shows how to do set continuous band as the legend.

18. Can I customize the default home screen of the map chart?

Yes, you can set the default home screen of the map chart.

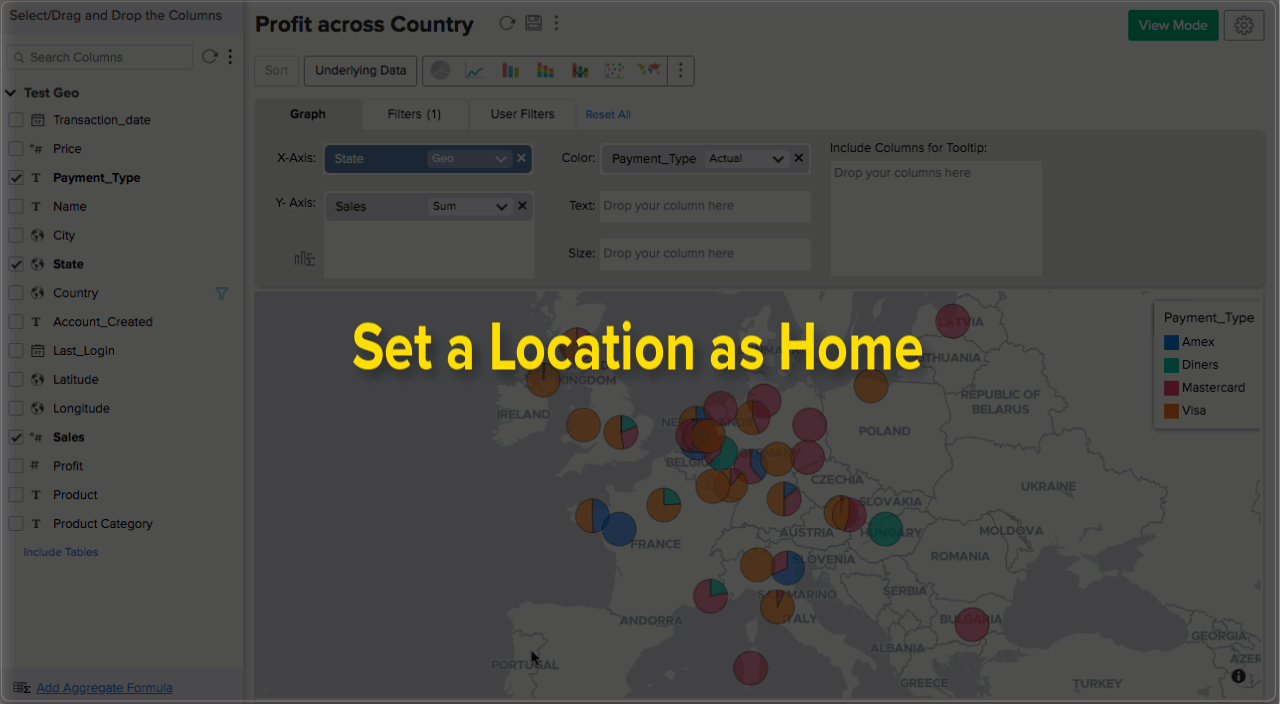

The below animation shows how to do set default home screen.

19. How can I customize the map chart settings?

Zoho Analytics allows you to easily customize the look and feel of your map chart from the settings option.

  1. Click the Settings option in the toolbar Select the Map tab.

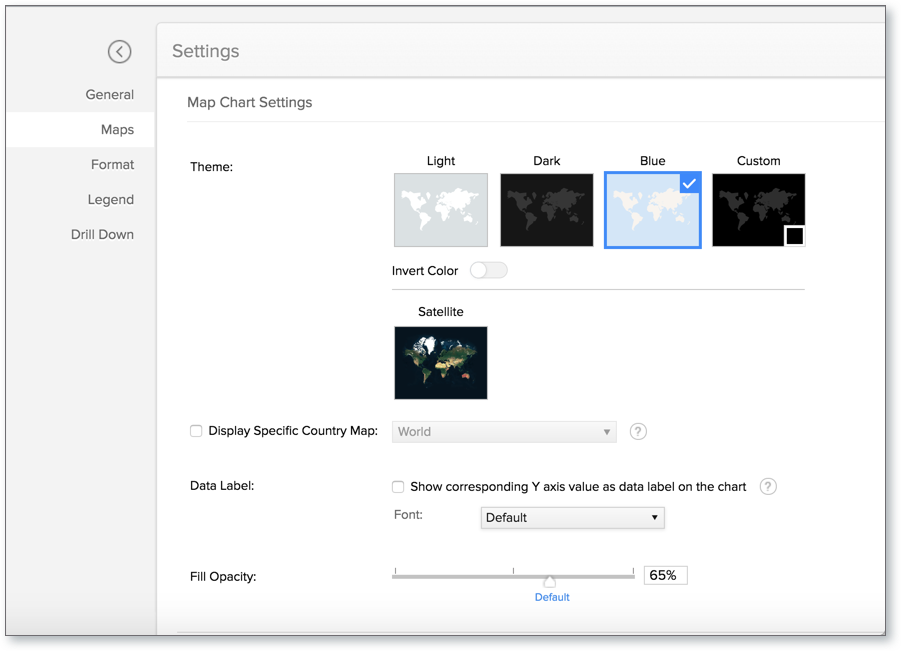

  2. The Map Chart Settings page will open as shown below. Please do note that the options on this page will differ based on the type of the map chart selected.
    • Theme - This option allows you to customize the theme of the map chart.
    • Data Label - This option allows you to add Y-axis value as data label on the map chart.
    • Fill Opacity - This option allows you to specify the opacity of the chart series color. (This is not applicable for Map - Scatter)
    • Markers Type - This option allows you to add a custom marker for the scatter chart.  (This is applicable only for Map - Scatter)
    • Display Specific Country Map - This option allows you to add a map of a particular country alone for the chart.
  3. Once you modified the necessary settings click Apply.

Zoho Analytics offers a wide range of options to customize the chart. Refer here to know more chart setting options that improve the overall appearance of your chart.

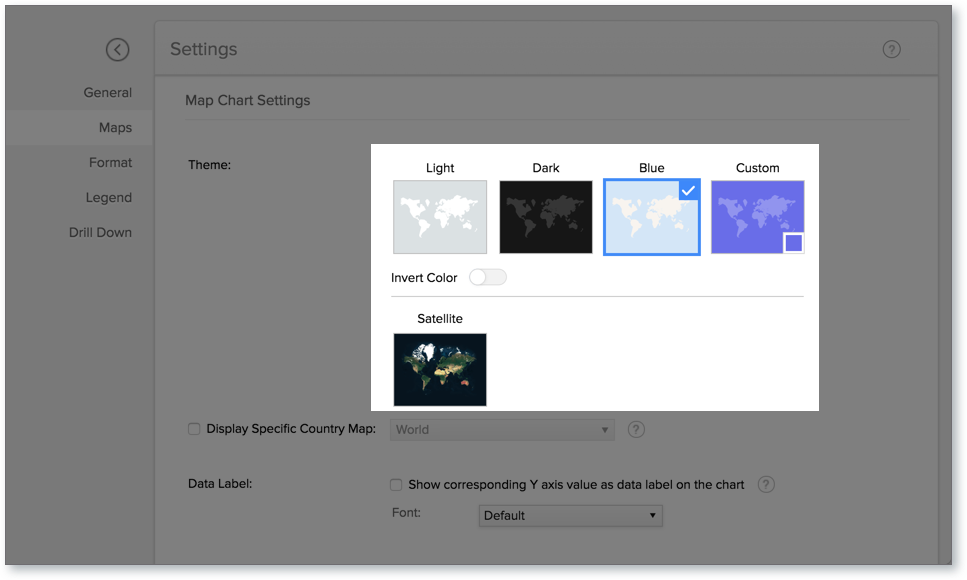

20. How do I customize the map chart Theme?

Zoho Analytics provides three themes for the map chart. They are:

  • Light - Applies a light grey theme.
  • Dark - Applies a dark grey theme.
  • Blue - Applies a blue theme.
  • Custom - Applies a theme based on custom chosen color.
  • Satellite - Applies a satellite map.

Follow the below steps to customize the theme.

  1. Open the chart you want to customize.
  2. Click the settings icon. The Settings page will open.
  3. Open the Maps tab.
  4.  Select the required theme.
  5. You can choose to invert the land and water color using the Invert Color toggle button. This is applicable for all theme except Satellite map.
  6. Click Apply. The selected theme will be applied.

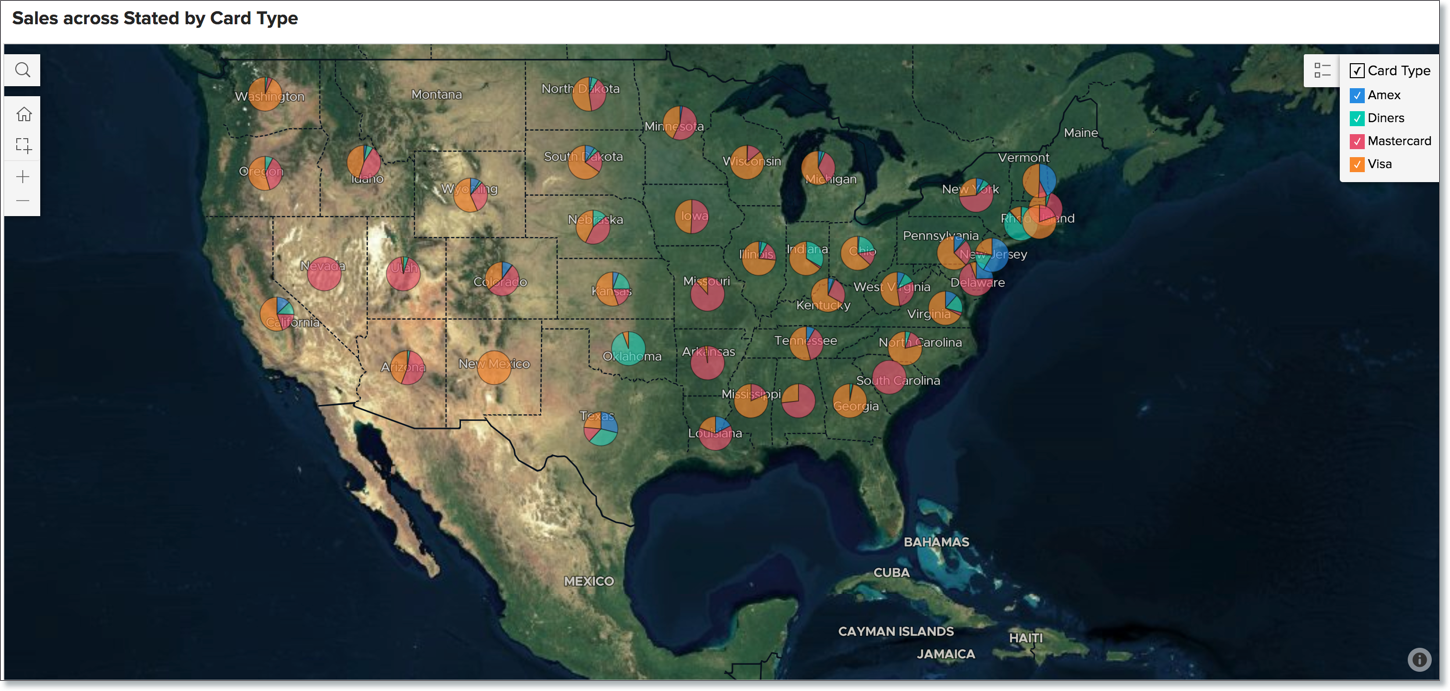

21. Can I create the map chart over the satellite map?

Yes, you can create a map chart over the satellite map. Follow the below steps to apply the satellite map theme.

  1. Open the chart to which you want apply satellite map theme.
  2. Click the settings icon. The Settings page will open.
  3. Open the Maps tab.

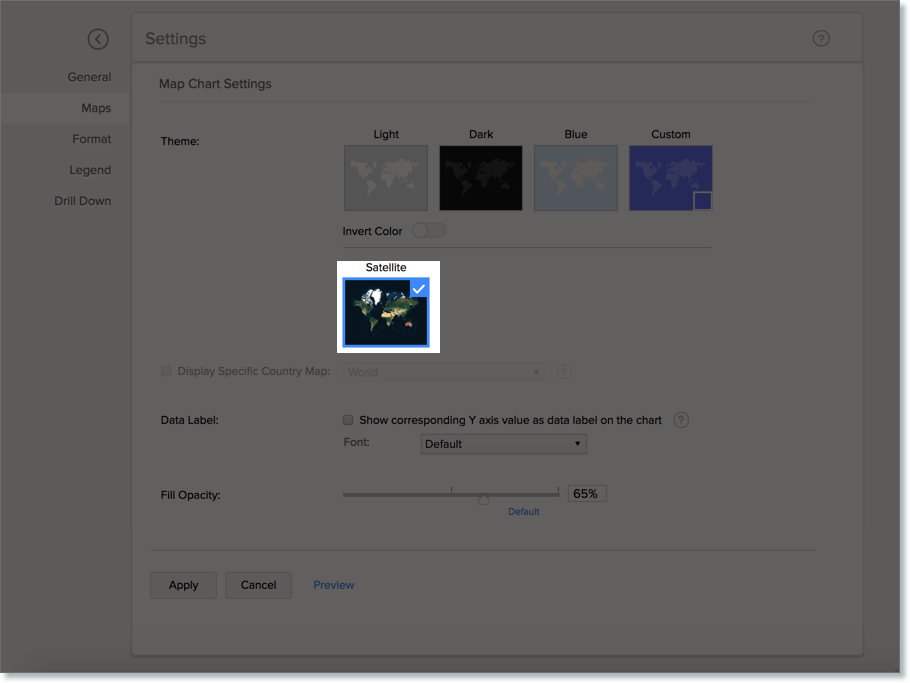

  4. Select the Satellite Map as Theme
  5. Click Apply. Chart will be plotted over satellite map.

22. How do I customize the marker used in the Map - Scatter Chart?

Markers are used to identify the location in a map. Zoho Analytics provides you 6 types of marker types to choose from.

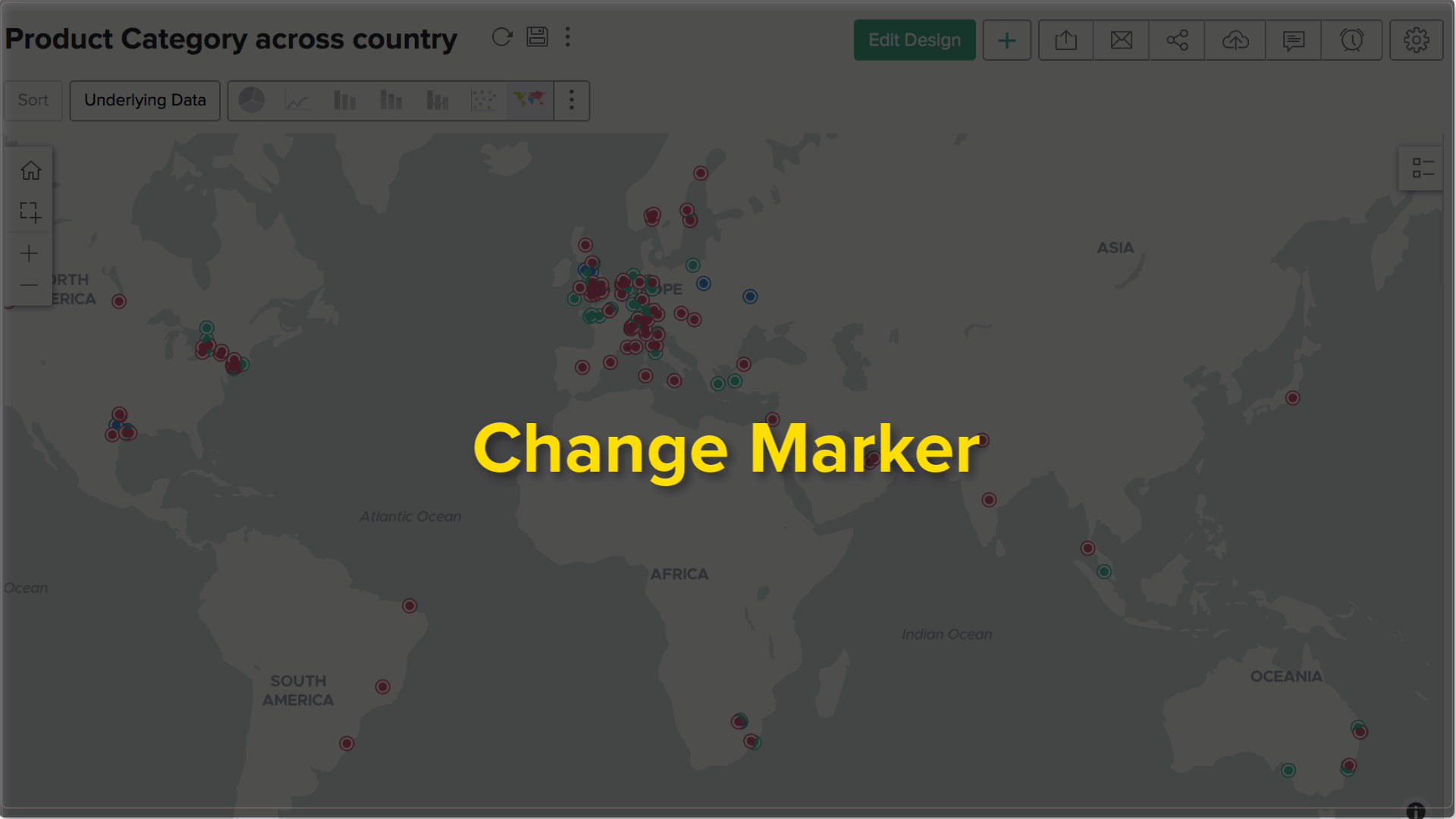

The below animation explains how to change the marker type in a map-scatter chart.

23. How do I customize the color of the charts plotted in the map?

You can customize the chart color of your map charts as you do for other chart types. Please do refer to this documentation to learn more.

24. How do I customize the legend settings in a map chart?

Refer to the legend settings documentation in charts to learn customizing the legend settings in map charts. Please do note that you cannot change the legend position in a map chart.
