To create a chart, click on New -> New Chart View, after selecting the corresponding table or Query Table on which you would like to create the chart upon. Watch demo

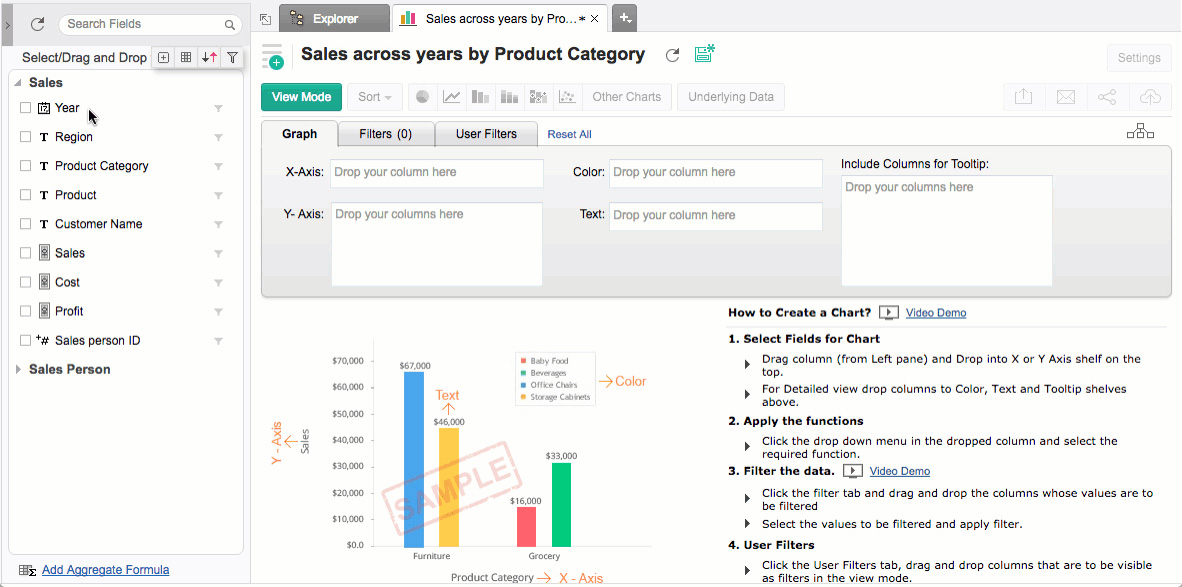

Drag and Drop based Chart Creation
Use the intuitive drag and drop based designer to construct the required chart.
Drag and drop the columns listed on the left pane and place them in the appropriate shelves in the design area.
Click on the "Click here to Generate Graph" link.
A Bar chart generated based on the columns dropped.
Chart showing "Sales across Regions by Product Category"
Multiple Y - Axis

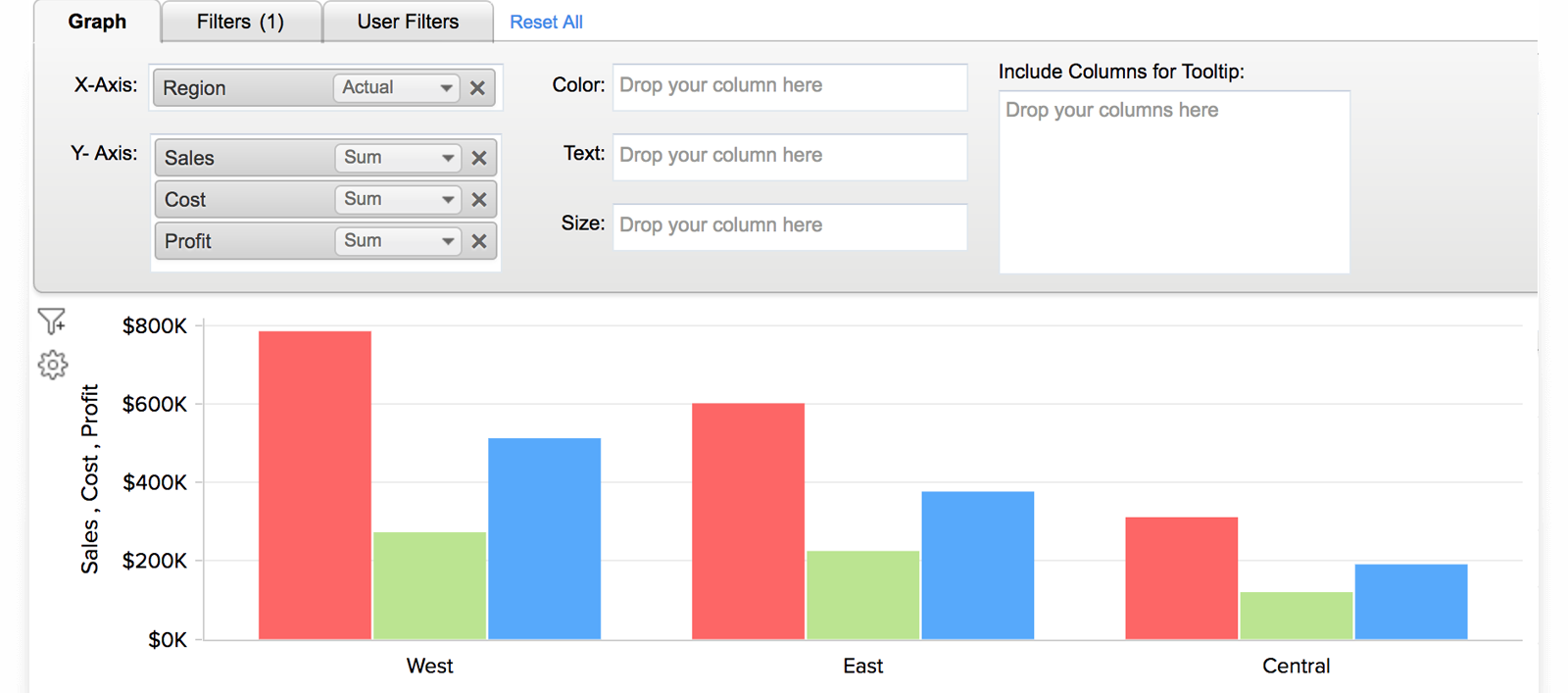

You can create charts with multiple Y - axis. Below is an example chart having Sales, Cost & Profit in the Y-axis.
Applying Powerful Filters
You can apply powerful filters over charts by selecting the "Filters" tab in the design area.
These are design time filters applied when you create a chart.
Below is a screenshot of the Sales-Cost-Profit data chart with the filter applied for the year 2015 alone.
Dynamic Filters for User Interaction
Zoho Reports allows you to include dynamic filtering capability in the reports you create, known as User Filters.
User filters enable your users who access the report, to apply filters on the data displayed. You can include any column to be exposed as a part of User Filters by selecting the "User Filters" tab.
The screenshots have the columns, Date & Product Category listed as user filters.
With the drill down feature, you can start with a category in the chart to drill down the hierarchy. This helps you to perform exploratory analytics of the category, right away in the same window.
You can choose to view your chart in any of the wide range of chart types offered by Zoho Reports, depending on the data.
Zoho Reports supports Line, Bar, Combination, Scatter, Stacked Bar, Pie, Funnel, Ring, Area, Stacked Area, Web and Table chart types.
